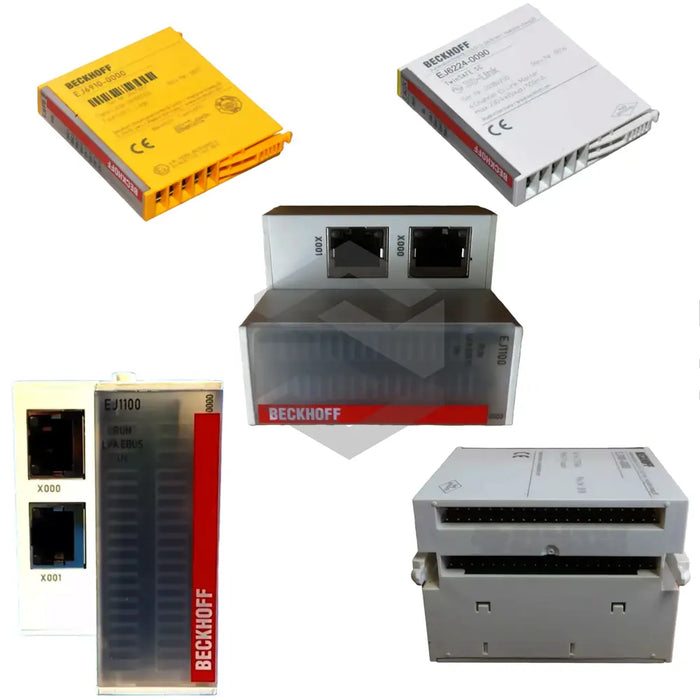

S image of EJ6224-0090

EJ6224-0090

by Beckhoff
$833.61 - $1,137.37
$833.61
$833.61 - $1,137.37
$833.61

The Beckhoff EJ6224-0090 from the EJ EtherCAT Plugins series is an EtherCAT plug-in module providing four IO-Link interfaces compliant with IO-Link Version V1.1 for streamlined integration of sensors and actuators. It supports flexible data transfer rates of 4.8/38.4/230.4 kbaud, operates on a 24 V DC supply via the E-bus with a typical current consumption of 110 mA and a device supply current of 500 mA per device, and accommodates cable lengths up to 20 m. Designed for industrial environments, it features an operating temperature range of -25…+60 °C, storage temperature of -40…+85 °C, protection rating IP20, shock and vibration resistance per EN 60068-2-27/-6, and EMC immunity/emission according to EN 61000-6-2/-6-4. Weighing approximately 30 g, this compact, 3-wire connection module also incorporates TwinSAFE SC and IO-Link configuration & sensor scan for advanced safety and diagnostics.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Cable Length

max. 20 m

Connection Method

3-wire

Data Transfer Rates

4.8/38.4/230.4 kbaud

Device Supply Current

500 mA per device

E-bus Current Consumption

typ. 110 mA

EMC Immunity/Emission

EN 61000-6-2/6-4

IO-Link Interfaces

4

IO-Link Version

V1.1

Operating Temperature

-25…+60°C

Protection Rating

IP20

Shock Resistance

EN 60068-2-27

Special Features

TwinSAFE SC; IO-Link config & sensor scan

Storage Temperature

-40…+85°C

Supply Voltage

24 V DC

Vibration Resistance

EN 60068-2-6

Weight

approx. 30 g
