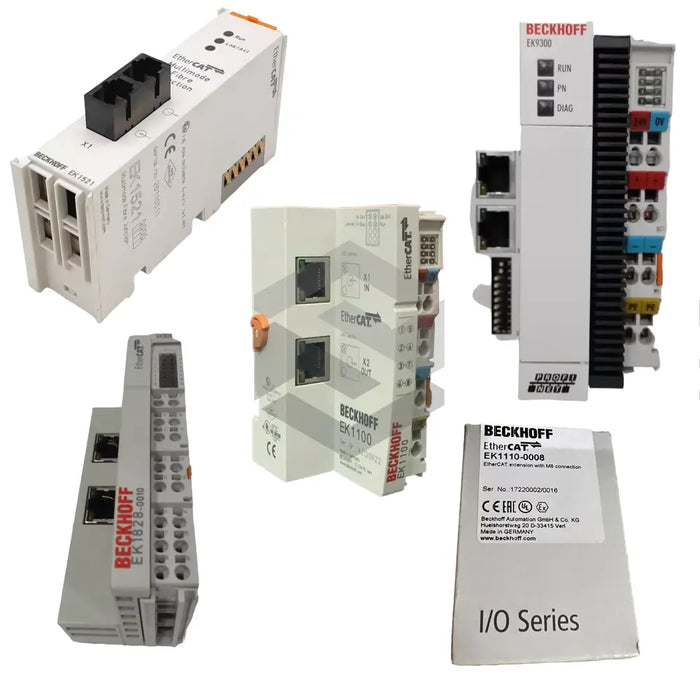

S image of EK1100-0050

EK1100-0050

by Beckhoff
$683.71 - $1,210.00
$683.71
$683.71 - $1,210.00
$683.71

The EK1100-0050 from Beckhoff features a data transfer rate of 100 Mbit/s and an approximate delay of 1 μs. Part of the EK EtherCAT Couplers series, it supports 65,534 terminals and uses shielded Cat.5 cable. The module has a 24 V DC power supply and bus interfaces via 2 x M8 connectors.

Functions from -25 to +60 °C and stores from -40 to +85 °C. With a max station distance of 100 m, it enables flexible network layouts. CE, UL, ATEX and IECEx markings guarantee industrial compliance.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Approvals/markings

CE, CCC, UL, ATEX, IECEx

Bus Interface

2 x M8, shielded

Current Consumption From Us

70 mA + (∑ E-bus current/4)

Current Supply E-bus

2000 mA

Data Transfer Medium

Ethernet/EtherCAT cable (min. Cat.5), shielded

Data Transfer Rates

100 Mbit/s

Delay

Approx. 1 µs

Distance Between Stations

Max. 100 m (100BASE-TX)

Number Of EtherCAT Terminals

Up to 65,534

Operating Temperature

-25…+60°C

Power Contacts

Max. 24 V DC/max. 10 A

Power Supply

24 V DC (-15%/+20%)

Protocol

EtherCAT

Storage Temperature

-40…+85°C

Task Within EtherCAT System

Coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks
