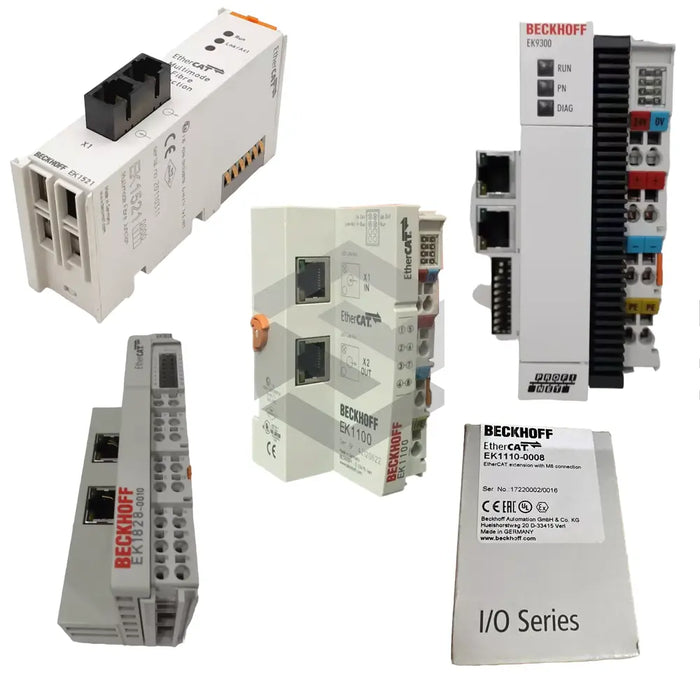

S image of EK1101-0000

EK1101-0000

by Beckhoff
$1,458.46 - $1,458.46
$1,458.46
$1,458.46 - $1,458.46
$1,458.46

In Stock, Ships 1 - 3 Days

The EK1101-0000 from Beckhoff supports 100 Mbit/s data rate and features a ≤1 µs communication delay. Part of the EK EtherCAT Couplers, it spans up to 100 m and handles 65,534 EtherCAT terminals. This coupler uses shielded Cat.5 Ethernet cable and draws a base current of 70 mA.

It supplies up to 2 A E-bus current at –25 to +55 °C and drops to 1 A at 55 °C. Two M8 shielded bus interfaces ensure reliable connectivity. Its 24 V DC power contact rating and IP20 protection suit industrial automation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Additional Current Consumption

E‑bus current sum/4

Base Current Consumption

70 mA

Bus Interface

2× M8, shielded

Communication Delay

≈1 µs

Configurable IDs

4096

Data Cable

Shielded Cat.5 Ethernet/EtherCAT

Data Rate

100 Mbit/s

E‑bus Supply Current

2000 mA

Max Addressable I/O

4.2e9 points

Max EtherCAT Terminals

65,534

Max Station Distance

100 m

Power Contact Rating

24 V DC, 10 A max

Protocol

EtherCAT

Supply Voltage

24 V DC (−15%/+20%)
