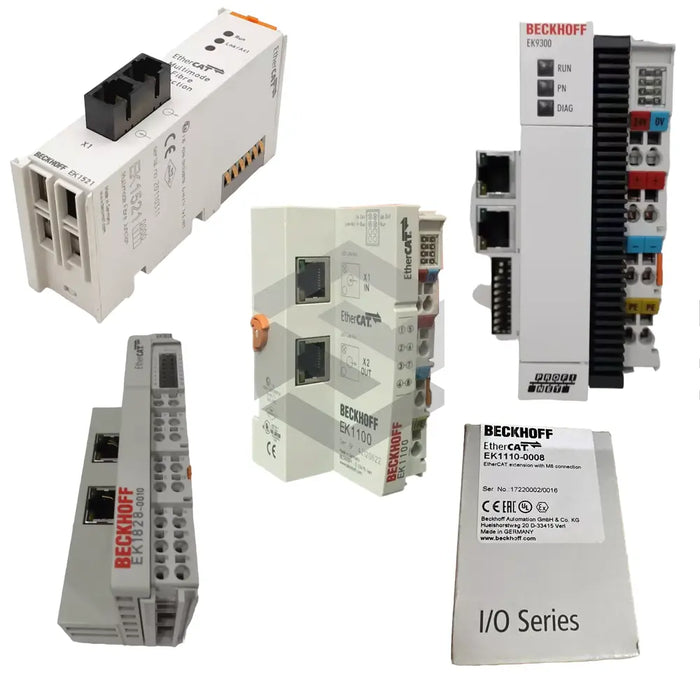

EK1501

Original price $811.97 - Original price $893.17
Original price
$811.97
$811.97 - $893.17
Current price $811.97

In Stock, Ships 1 - 3 Days

The EK1501, produced by Beckhoff, a German engineering firm known for its industrial PCs, automation software, and I/O platforms, is an EtherCAT coupler designed to connect EtherCAT Terminals with an EtherCAT network. The coupler employs a 50/125 µm multimode glass fiber for data transfer, granting uninterrupted signal transmission for up to 2 km and enabling a rapid data transfer rate of 100 Mb/s with minimal delay. With three hexadecimal ID switches, up to 4096 IDs can be assigned for easy component grouping within the network, and two SC Duplex channels serve as the bus interface. The device requires a 24 V DC supply, runs on a 130 mA current, and has secured CE, ATEX, and UL approvals. Compatible with a temperature range of 0 ᵒC to 55 ᵒC and humidity up to 95%, the lightweight (190 g) coupler is protected to the IP 20 standard.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Beckhoff

Product


EK1501 EtherCAT Coupler

Communication Method


EtherCAT Terminals with EtherCAT

Data Transfer Material


50/125 µm multimode glass fiber

Maximum Distance Between Two Stations


2 km

Amount of Supported EtherCAT Terminals


65,534

ID Switches


Three hexadecimal ID switches

Possible ID Figures


4096

Data Transfer Rate


100 Mb/s

Data Transfer Delay


1 µs

Bus Interface


Two SC Duplex channels

Running Current


130mA

Voltage Supply


24 V DC

Approvals


CE, ATEX, UL

Operation Temperature Range


0 ᵒC to 55 ᵒC

Operation Relative Humidity


Up to 95%

Weight


190g

Protection Standard


IP 20
