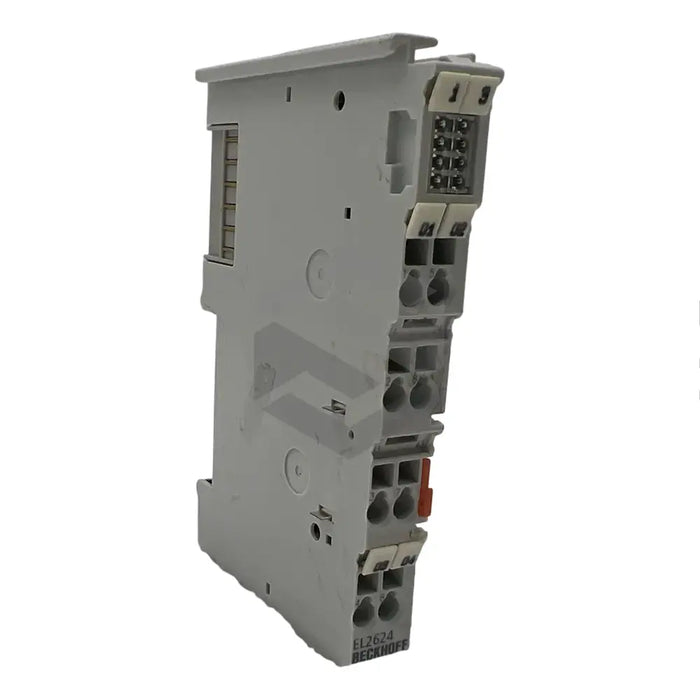

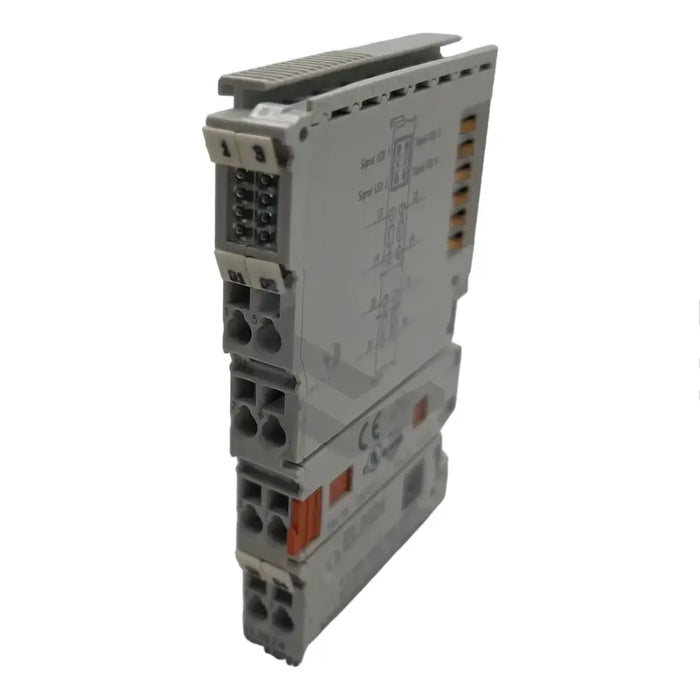

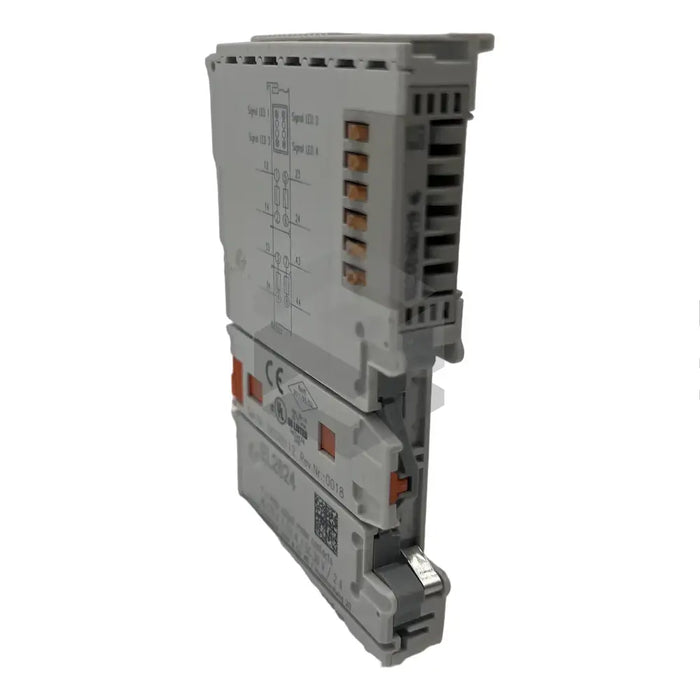

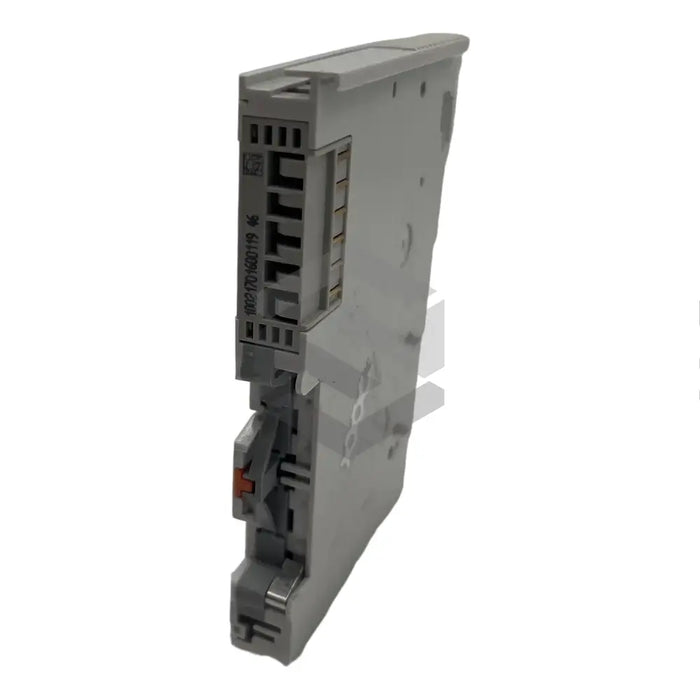

C image of EL2624 | Main (Front Left)

EL2624

by Beckhoff
$388.82 - $477.42
$388.82
$388.82 - $477.42
$388.82

Available, Shipping Varies

The Beckhoff EL2624 from the EL EtherCAT Terminals series is a compact 4-channel mechanical relay output terminal designed for industrial automation. Featuring integral signal LEDs and a durable polycarbonate housing, it offers switching of up to 125 V AC or 30 V DC with an output current of 0.5 A AC; 2 A DC per channel. It connects via a spring-loaded & plug-in method for rapid, secure wiring and mounts on a 35 mm DIN rail (EN 60715) with lock. The device operates between 0 … +55 °C (storage −25 … +85 °C) and measures 12 mm × 100 mm × 68 mm. Certified to UL, CE and compliant with EMC standards EN 61000-6-2 / EN 61000-6-4, it ensures reliable performance under vibration and shock (EN 60068-2-6 / EN 60068-2-27).

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Approvals

UL, CE

Channels

4

Communication

EtherCAT

Connection

spring-loaded & plug-in

Dimensions

12 mm × 100 mm × 68 mm

EMC

EN 61000‑6‑2 / EN 61000‑6‑4

Explosion protection

non‑intrinsically safe

Housing

compact terminal with signal LEDs

Input voltage

3.3 V, 5 V TTL; 12–125 V

Mounting

35 mm DIN rail (EN 60715) with lock

Operating temperature

0…+55°C

Output current

0.5 A AC; 2 A DC

Relay type

mechanical

Storage temperature

-25…+85°C

Vibration/shock

EN 60068‑2‑6 / EN 60068‑2‑27
