EL6688

Original price $736.42 - Original price $2,581.40
Original price
$736.42
$736.42 - $2,581.40
Current price $736.42

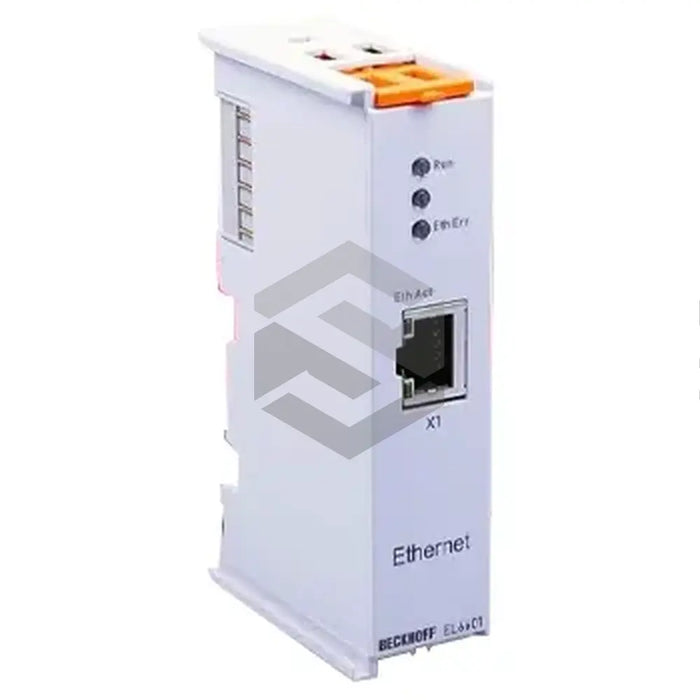

The Beckhoff EL6688 is a PTP external synchronization interface that serves as an EtherCAT terminal. This device has one Ethernet port, an Ethernet IEEE 802.3 bus system, and a 10BASE-T/100BASE-TX Ethernet interface. Its three-colored status LEDs aid in hardware diagnostics, and it's powered via an E-bus. Primarily, it operates within 0°C to 55°C, and requires storage within -25 to +85 degrees Celsius. This device features a safety watchdog, an IEEE 1588 master or slave clock, and 500V Ethernet/E-bus electrical isolation. Data transmission is signaled by a yellow LED light, with off or on determining transmission rates. With a current consumption rating of 310mA, an IP20 protection class, EN 60068-2-6/EN 60068-2-27 compliant vibration/shock resistance, and UL listing and CE certification, the EL6688 is designed for both safety and efficiency. Weighing approximately 75g, it measures 26mm x 100mm x 52mm, and is deliverable worldwide.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Beckhoff

Product


EL6688 PTP External Synchronization Interface

Bus System


Ethernet IEEE 802.3

Ethernet Interface


10BASE-T/100BASE-TX

Power Supply


E-bus

Operating Temperature Range


0°C to 55°C

Storage Temperature Range


-25°C to +85°C

Features


Watchdog, IEEE 1588 master or slave clock, Distribution clocks

Electrical Isolation


500V Ethernet/E-bus

Mounting


35mm rail

E-bus Current Consumption


310mA

Protection Class


IP20

Installation Orientation


Any (Horizontal or Vertical)

Product Certification


UL Listed, CE Certified

Vibration/Shock Resistance


EN 60068-2-6/EN 60068-2-27

Relative Humidity Operating Range


95% Non-condensing

Dimensions


26mm x 100mm x 52mm

Weight


75g
