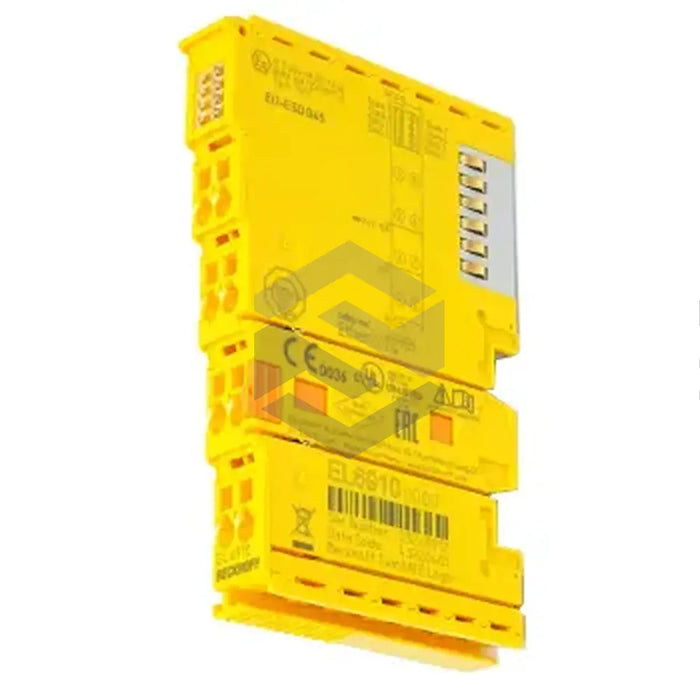

P image of EL6910

EL6910

by Beckhoff
$1,712.35 - $1,883.59
$1,712.35
$1,712.35 - $1,883.59
$1,712.35
The EL6910 EtherCAT Logic Terminal, manufactured by the renowned German company, Beckhoff Automation Technology, is designed to enhance the functionality of Beckhoff's Bus Terminal system via seamless integration with TwinSAFE input/output devices. Boasting a compact size of 12mm x 100mm x 68 mm (W x H x D) and a weight of approximately 50 grams, this terminal offers eight LED indicators and eight connecting points on its front panel. It also provides rapid cycle and error response times - 1 ms and under 2ms respectively. Being rigorously tested, it meets established EN standards for vibration/shock resistance and EMC emission, and functions optimally at altitudes ranging from 690 meters below to 2450 meters above sea-level. It operates on 24V DC power supply, consuming 160mA current, resulting in 1W power dissipation. For optimal performance, it should be installed in control cabinets with IP54 protection class alongside other bus terminals.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Beckhoff

Product Type

Logic Terminal

Model

EL6910

Connections

8

LED Indicators

8

Size

12mm x 100mm x 68 mm

Weight

50 grams

Cycle Time

1 ms

Error Response Time

2 ms

Compliance Standards

EN Vibration/Shock Resistance, EN EMC Emission

Installation Altitude

750hPa - 1100hPa, Up to 2450m above sea-level or 690m below sea-level

Operating Voltage

24V DC

Power Dissipation

1W

Current Consumption

160mA

Mounting

35mm mounting rail

Protection Class

IP20

Required Clearance (Control Box)

20mm (either side), 35mm (top and bottom)
