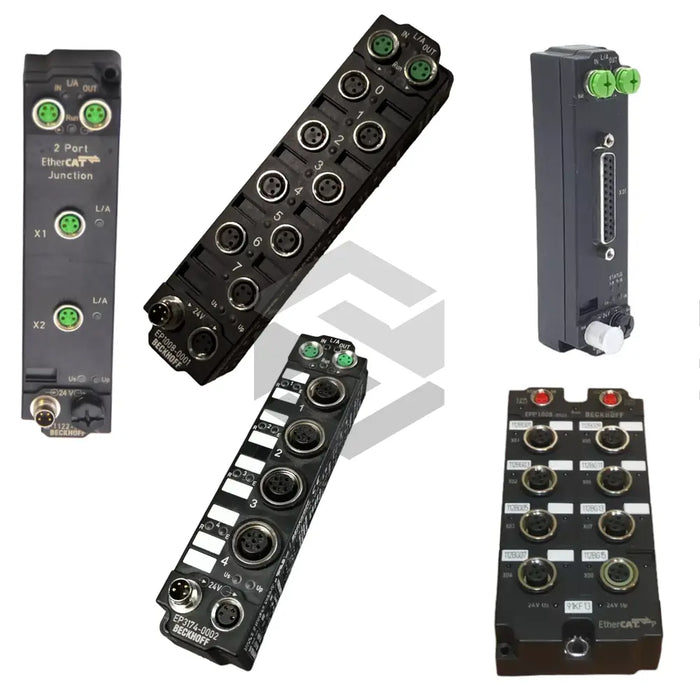

EP3184-0402
by Beckhoff
The Beckhoff EP3184-0402 module belongs to the EP Digital Input Modules family and serves as a robust digital output interface for EtherCAT Box systems. This module features 8 electronic PNP outputs and operates on a 24 V DC supply, delivering up to 0.5 A per channel for reliable signal switching. With a total module current capacity of 4.0 A, it is designed to control field-level devices in demanding industrial applications, ensuring precise actuation of valves, indicators, and relays. Its primary function is to provide a compact, high-performance interface between an EtherCAT network and external loads, optimizing machine automation workflows.
In-depth technical specifications highlight the module’s resilience and efficiency. The device employs M8 connectors for secure and compact wiring, and its typical E-bus consumption is 120 mA, minimizing network power draw. Each channel offers short-circuit protection and overload protection, safeguarding both the module and connected equipment against electrical faults. Operating voltage tolerance of –15%/+20% ensures steady performance under fluctuating supply conditions. The module is rated IP67 for ingress protection, making it dust-tight and water-resistant for temporary immersion in industrial wash-downs or outdoor installations.
Built for versatility, the EP3184-0402 supports direct mounting via integral through holes, simplifying panel or machine integration without additional brackets. The compact housing measures 30 mm x 126 mm x 26.5 mm, while the operational temperature range of –25 °C to +60 °C accommodates harsh thermal environments. It accepts conductors up to AWG 24, aligning with standard industrial cabling practices. Backed by a one-year warranty, this EtherCAT Box module delivers high reliability and minimal downtime. In industrial automation settings, its combination of durability, precise output control, and seamless EtherCAT integration translates into enhanced process efficiency and reduced maintenance overhead.
