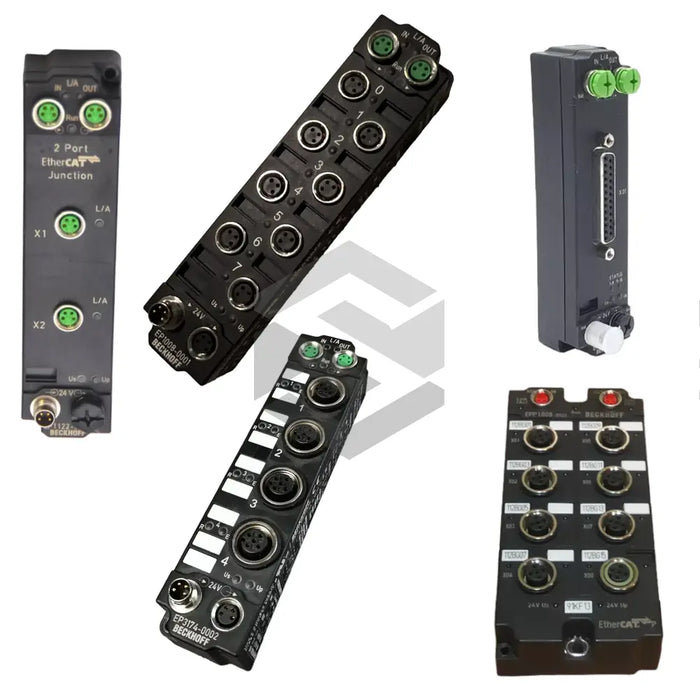

S image of EP8309-1022

EP8309-1022

by Beckhoff
$1,291.62 - $3,100.93
$1,291.62
$1,291.62 - $3,100.93
$1,291.62

The EP8309-1022 from Beckhoff features a nominal voltage of 24 V DC and supports EtherCAT protocol. Part of the EP Digital Input Modules series, it includes 8 I/O channels and a 3 ms input filter. It has 2 analog inputs and 1 analog output at 12-bit resolution.

It uses M12 screw-type connections and a 2 x M8 bus interface. It operates within a temperature range of -25 to +60 °C. Measurement error remains below 0.3% for inputs and under 0.1% for outputs.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Bus Interface

2 x M8 socket, 4-pin, a-coded, shielded

Connection Method

M12, screw type

Distributed clocks

Yes

Input current

3mA

Input Filter

3 ms

Installation Position

Variable

Limit Frequency

2.5 kHz

Measurement Error/uncertainty

Input: < 0.3%, Output: < 0.1%

Nominal Voltage

24 V DC (-15%/+20%)

Number Of Analog Inputs

2, single-ended, 12 bit, 0/4…20 mA

Number Of Analog Outputs

1, single-ended, 12 bit, 0/4…20 mA

Number Of Channels

8 digital inputs or outputs

Number Of Pwmi Outputs

1 x 1.2 A, max. 30 kHz

Protocol

EtherCAT

Resolution

10 bit
