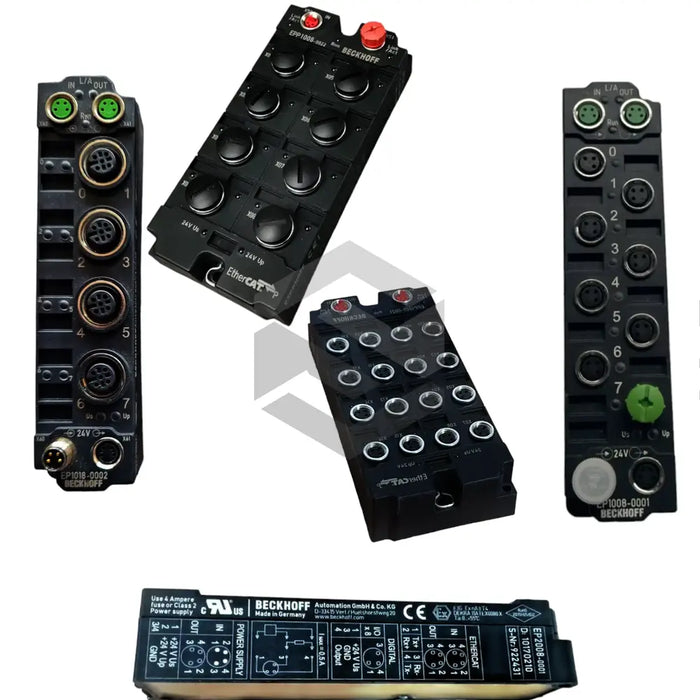

S image of EPP1004-0061

EPP1004-0061

by Beckhoff
$847.66 - $847.66
$847.66
$847.66 - $847.66
$847.66

In Stock, Ships Fast

The EPP1004-0061 from Beckhoff features a robust polyamide plastic housing and four integrated digital inputs. Part of the EPP EtherCAT P Box Modules, it operates at a nominal input voltage of 24 V DC and includes a 3.0 ms input filter for signal conditioning.

It offers two P-coded M8 sockets, a 3-pin A-coded M8 input connector, and meets EMC standards EN 61000-6-2/-6-4. The module resists temperatures from -25 °C to +60 °C and provides a short-circuit-proof sensor supply up to 0.5 A.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Bus interface

2 × M8 socket, P-coded, shielded

Digital input high voltage

11…30 V (EN 61131-2, type 3)

Digital input low voltage

-3…+5 V (EN 61131-2, type 3)

EMC immunity/emission

EN 61000-6-2/EN 61000-6-4

Input connector

3-pin A-coded M8 ×1

Input current

typ. 3 mA (EN 61131-2, type 3)

Input filter

3.0 ms

Nominal input voltage

24 V DC (-15%/+20%)

Number of inputs

4

Operating temperature

-25…+60°C

Protocol

EtherCAT

Sensor supply

short-circuit proof, max. 0.5 A

Storage temperature

-40…+85°C

Supply current (Us)

typ. 100 mA

Vibration/shock resistance

EN 60068-2-6/EN 60068-2-27
