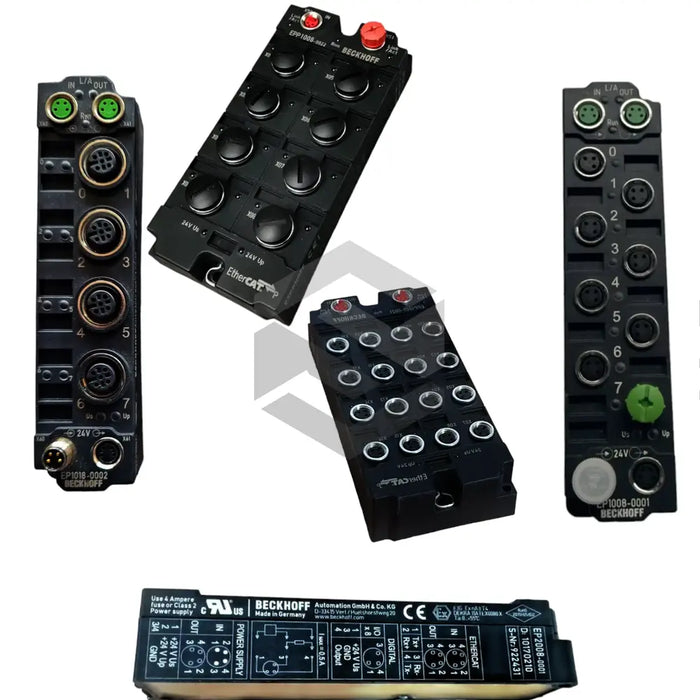

S image of EPP1018-0001

EPP1018-0001

by Beckhoff
$578.85 - $636.74
$578.85
$578.85 - $636.74
$578.85

The EPP1018-0001 from Beckhoff supports the EtherCAT protocol and features 8 digital inputs with a nominal input voltage of 24 V DC. Part of the EPP EtherCAT P Box Modules, it employs an input filter of 10 μs and complies with EN 61131-2 standards and CE and UL approvals.

It features screwable M8 connectors, provides electrical isolation, and includes a short-circuit proof driver block. It operates within an ambient temperature range of -25 °C to +60 °C.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Bus interface

2 x M8 socket, P-coded, shielded

EMC immunity/emission

EN 61000-6-2/EN 61000-6-4

Input connections

M8 x 1, 3-pin, A-coded

Input current

typ. 3 mA (EN 61131-2 type 3)

Input filter

10 µs

Nominal input voltage

24 V DC (-15%/+20%)

Number of inputs

8

Operating temperature

-25…+60°C

Protocol

EtherCAT

Sensor supply

from control voltage, max. 0.5 A, short-circuit proof

Shock resistance

EN 60068-2-27

Signal voltage ('0' level)

-3…+5 V (EN 61131-2 type 3)

Signal voltage ('1' level)

11…30 V (EN 61131-2 type 3)

Storage temperature

-40…+85°C

Supply current (Us)

typ. 100 mA

Vibration resistance

EN 60068-2-6
