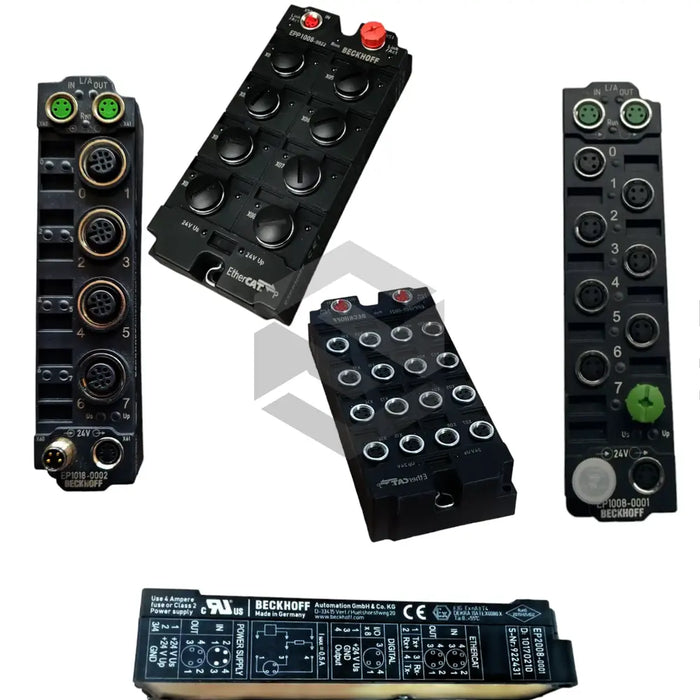

S image of EPP1111-0000

EPP1111-0000

by Beckhoff
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The EPP1111-0000 from Beckhoff weighs approximately 165 grams and supports data transfer rates up to 100 Mbit/s. Part of the EPP EtherCAT P Box Modules, it operates at a nominal voltage of 24 V DC and features a protection rating of IP65, IP66, IP67.

It includes two shielded P-coded M8 sockets, three decimal ID switches for group ID assignment and a Run LED displaying link and activity status. No configuration is required, and it tolerates temperatures from -25 °C to +60 °C.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Bus Interface

2 x M8 socket, P-coded, shielded

Configuration

Not required

Data Transfer Medium

EtherCAT cable

Data Transfer Rates

100 Mbit/s

Dimension (W x H x D)

30 mm x 126 mm x 26.5 mm

Distance Between Stations

100 m (100BASE-TX)

Emc Immunity/emission

Conforms to EN 61000-6-2/EN 61000-6-4

Nominal Voltage

24 V DC (-15%/+20%)

Operating/storage Temperature

-25…+60°C/-40…+85°C

Power Supply

24 V DC

Protection Rating

IP65, IP66, IP67

Protocol

EtherCAT

Task Within EtherCAT System

Identification of any EtherCAT group in the EtherCAT network

Vibration/shock Resistance

Conforms to EN 60068-2-6/EN 60068-2-27

Weight

Approx. 165 g
