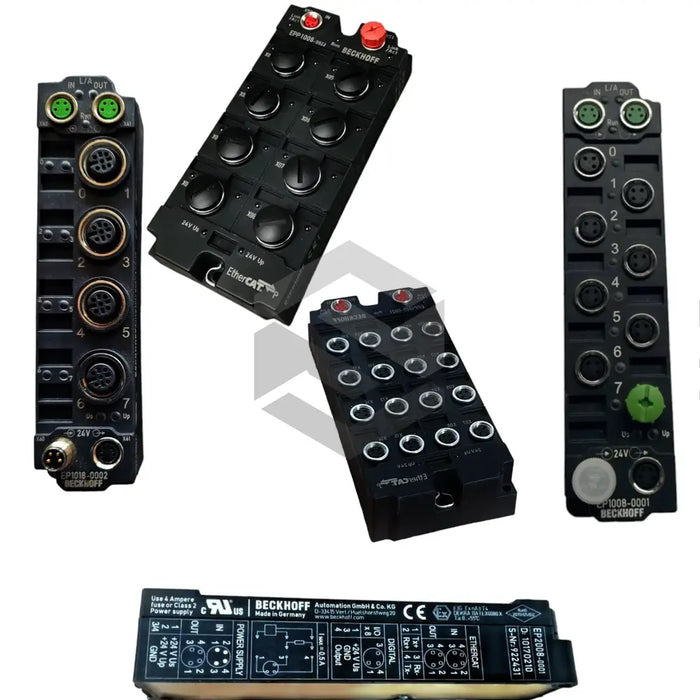

S image of EPP1321-0060

EPP1321-0060

by Beckhoff
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The EPP1321-0060 from Beckhoff supports a nominal voltage of 24 V DC and weighs approximately 90 g. Part of the EPP EtherCAT P Box Modules, this module features IP65/66/67 protection and a data transfer rate of 100 Mbit/s.

It has a typical current consumption of 100 mA, supplies up to 3 A per EtherCAT P port, and enables station distances of 100 m. The module functions as a converter from EtherCAT to EtherCAT P and operates between -25 to +60 °C.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Approvals

CE

Bus interface

1 x M8 socket, shielded; 1 x M8 socket P-coded, shielded

Current consumption

Typ. 100 mA

Data transfer rate

100 Mbit/s

Downstream power connection

1 x M8 female socket, 4-pin, A-coded

EtherCAT channels

IN 1; OUT 1 (EtherCAT P)

Function

Converter from EtherCAT to EtherCAT P

Nominal voltage

24 V DC (-15%/+20%)

Operating temperature

-25 to +60°C

Power supply feed

1 x M8 male socket, 4-pin, A-coded

Protection rating

IP65/66/67 (EN 60529)

Protocol

EtherCAT/EtherCAT P

Station distance

100 m (100BASE-TX)

Storage temperature

-40 to +85°C

Total current

Max. 3 A (all EtherCAT P ports)

Weight

Approx. 90 g
