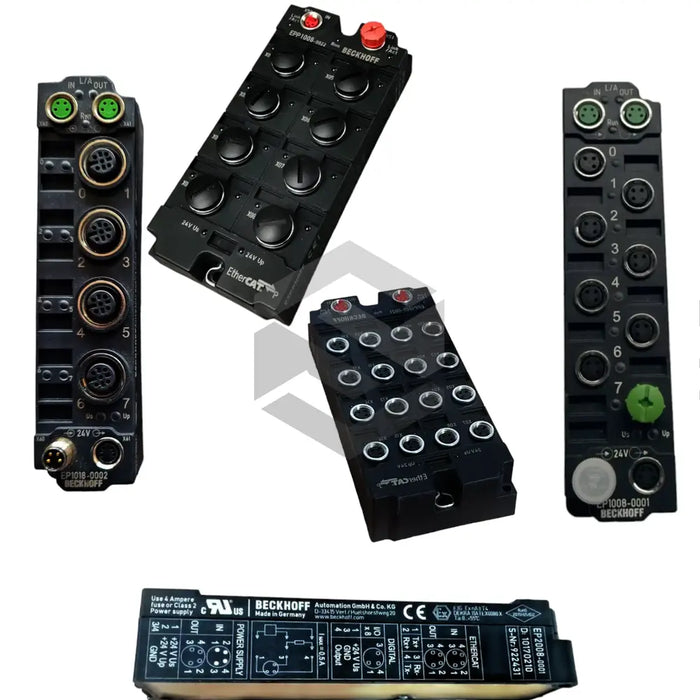

The EPP2316-0008 from Beckhoff is an EtherCAT P Box module in the EPP EtherCAT P Box Modules series. It features 8 inputs and 8 outputs, supports the EtherCAT protocol via a 2 x M8 socket bus interface, and operates at 24 V DC with 0.5 A per channel short-circuit protection. With a 10 µs input filter and IP67 rating, it ensures reliable industrial automation performance.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
0 Signal Voltage
-3…+5 V
1 Signal Voltage
11…30 V, 6 mA input current (EN 61131-2, type 3)
Bus Interface
2 x M8 socket, P-coded, shielded
Input Filter
10 µs
Input/output Connections
D-sub socket, 25-pin, UNC4-40
Load Type
ohmic, inductive, lamp load
Max. Output Current
0.5 A per channel, individually short-circuit proof
Number Of Channels
8 inputs + 8 outputs
Protocol
EtherCAT
Rated Load Voltage
24 V DC (-15%/+20%)
Sensor Supply
from control voltage, max. 0.5 A, short-circuit proof
Short-circuit Current
typ. 1.5 A
Special Features
ideal for high number of channels
Specification
EN 61131-2, type 1/3
Switching Times
typ. TON: 60 µs, typ. TOFF: 300 µs
