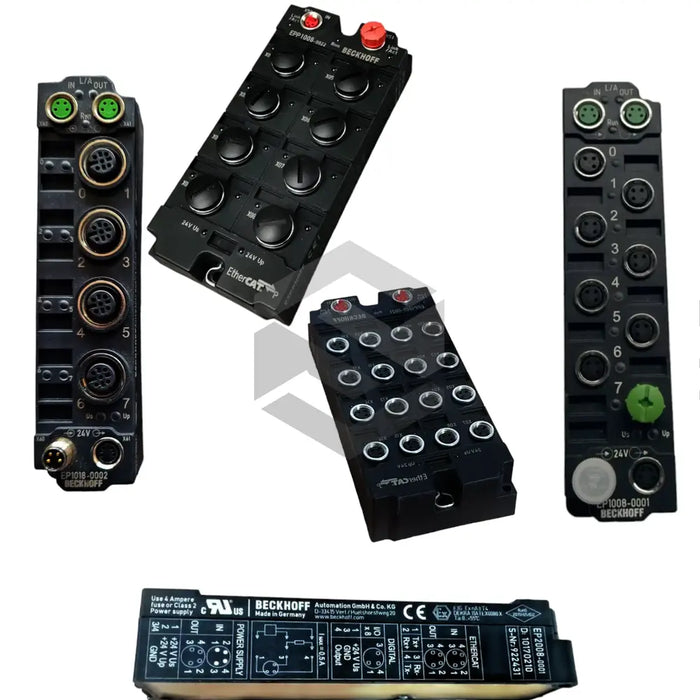

S image of EPP2328-0001

EPP2328-0001

by Beckhoff
$1,718.17 - $1,718.17
$1,718.17
$1,718.17 - $1,718.17
$1,718.17

Available, Shipping Varies

The EPP2328-0001 module from Beckhoff’s EPP EtherCAT P Box Modules series weighs 165 grams and provides four digital inputs and four digital outputs over EtherCAT. It supports 24 V DC and supplies 2 A per channel (3 A total), features a 3 ms input filter, and allows ohmic, inductive, and lamp loads. It uses M8 P-coded connectors for I/O and has LED status indicators for each channel. It is IP65 rated and complies with EN 61000-6-2 and EN 60529.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Auxiliary Power Current

20 mA typ.

Bus Interface

2× M8 P‑coded sockets, shielded

Channels

4 inputs, 4 outputs

I/O Connections

M8×1, 3‑pin, A‑coded

Input Filter Time

3 ms

Load Type

ohmic, inductive, lamp

Max Output Current

2 A/channel (total 3 A), short‑circuit proof

Protocol

EtherCAT

Rated Load Voltage

24 V DC (−15%/+20%)

Sensor Supply

≤0.5 A, from control voltage, short‑circuit proof

Short‑circuit Current

15 A typ.

Signal Voltage Ch0

-3…+5 V

Signal Voltage Ch1

11…30 V, 6 mA (EN 61131‑2 Type 3)

Standards

EN 61131‑2 Type 1/3

Turn‑off Time

200 µs typ.

Turn‑on Time

200 µs typ.
