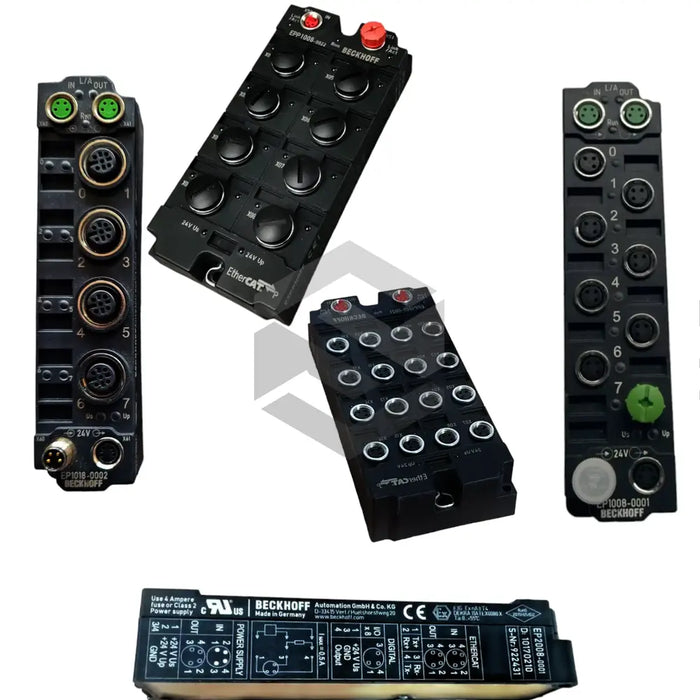

S image of EPP2338-0002

EPP2338-0002

by Beckhoff
$997.73 - $1,551.85
$997.73
$997.73 - $1,551.85
$997.73

The EPP2338-0002 from Beckhoff is a digital EtherCAT module with eight digital I/Os and weighs approximately 165 g. Part of the EPP EtherCAT P Box Modules, it supports the EtherCAT protocol and features a rated load voltage of 24 V DC.

It includes a 10 µs input filter, dual M8 P-coded shielded bus interfaces, and is compliant with EN 61000-6-2/-6-4 for EMC immunity and emission. The polyamide housing ensures durability and the module offers IP67 protection.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Auxiliary Power Current

typ. 20 mA

Bus Interface

2 × M8 sockets, P‑coded, shielded

Channels

8 digital I/O

I/O Connection

M12×1, 5‑pin, A‑coded

Input Filter

10 µs

Max Output Current

0.5 A/channel, short‑circuit proof

Protocol

EtherCAT

Rated Load Voltage

24 V DC (-15%/+20%)

Sensor Supply

from load voltage, max. 0.5 A, short‑circuit proof

Short‑circuit Current

typ. 1.5 A

Signal Voltage 0-level

-3…+5 V

Signal Voltage 1-level

11…30 V; input current 6 mA (EN 61131-2 Type 3)

Standard

EN 61131-2 Type 1/3

Switching Time Off

typ. 100 µs

Switching Time On

typ. 50 µs

Weight

approx. 165 g
