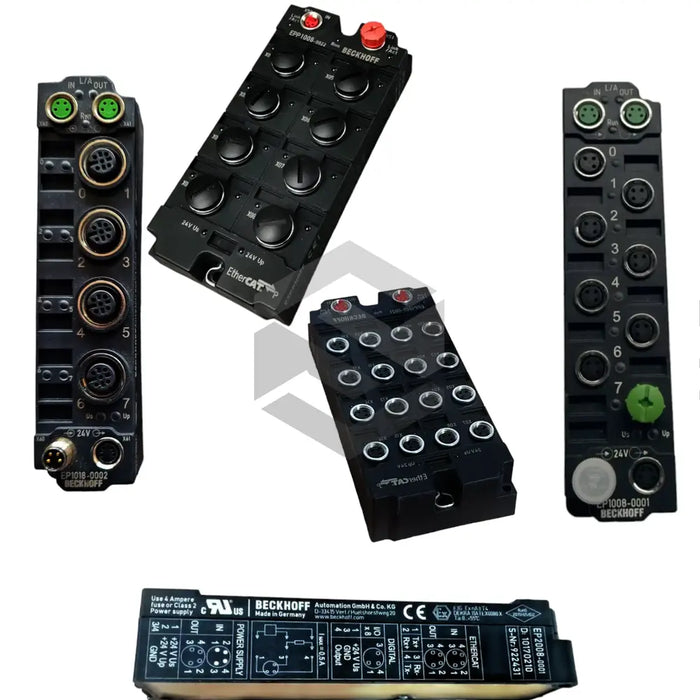

S image of EPP6001-0002

EPP6001-0002

by Beckhoff
$2,336.25 - $2,336.25
$2,336.25
$2,336.25 - $2,336.25
$2,336.25

In Stock, Ships 1 - 3 Days

The EPP6001-0002 module from Beckhoff is part of the EPP EtherCAT P Box Modules series. It features individually selectable RS232, RS485, and RS422 interfaces, supports full duplex TxD and RxD communication, and uses two P-coded M8 bus sockets. It offers two digital 24 V DC outputs with 0.5 A max current per channel and includes a +5 V DC, 1 A sensor supply. The module operates over EtherCAT and permits RS422/485 cable lengths up to 1000 m.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Bit Distortion

< 3%

Bus Interface

2 x M8 socket, P-coded, shielded

Cable Length

RS232: max. 15 m; RS422/RS485: approx. 1000 m

Communication

TxD and RxD, full duplex

Connection Method

M12 socket, 5-pin, a-coded

Data Buffer

864 bytes receive buffer, 128 bytes transmit buffer

Data Transfer Channels

1

Data Transfer Rates

300…115,200 baud; 9600 baud (8 bit, no parity, 1 stop bit) is preset

Input Filter

10 µs (for digital inputs)

Interfaces

Individually selectable from RS232, RS485, RS422

Number Of Channels

2 (1/1), TxD and RxD, full duplex

Number Of Inputs

2 digital 24 V inputs

Number Of Outputs

2 (digital 24 V DC)

Protocol

EtherCAT

Sensor Supply

+5 V DC, 1 A
