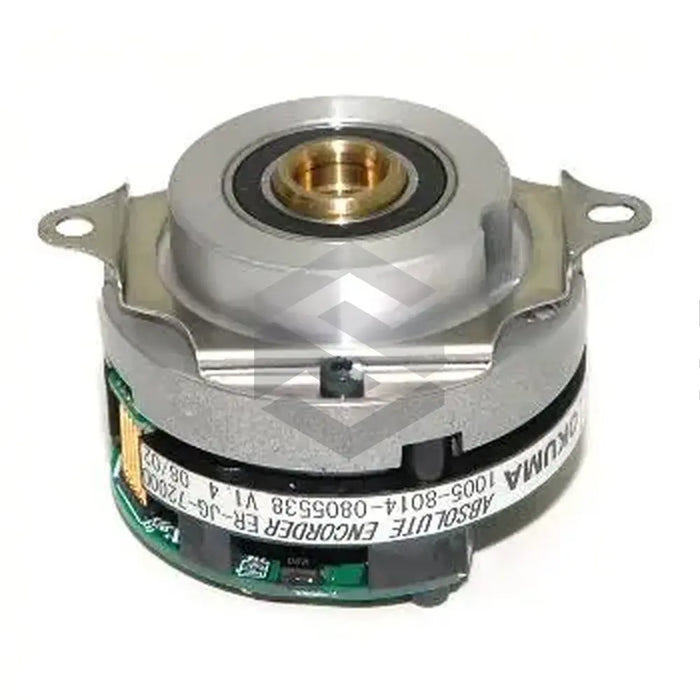

P image of ER-JG-7200D

ER-JG-7200D

by Okuma
$1,634.52 - $6,402.23
$1,634.52
$1,634.52 - $6,402.23
$1,634.52
The ER-JG-7200D, manufactured by Okuma, is an absolute position encoder designed for precise feedback on axis speed and positioning. It comes equipped with a multi-pole resolver (MPR) for both higher and lower digit positioning, ranging from 0.0001 to 123.4560. With a feedback system operating at a frequency of 5kHz, the encoder compares phase offsets to a CNC-generated 81.92 MHz clock signal to measure distance. With every 36 degrees turn, a 360° phase shift is generated, allowing the control to count 16384 clock pulses per revolution. This feedback signal interfaces with the OSP control. The ER-JG-7200D is designed to digitize parallel pulse signals and can be attached to several systems, including hydraulic ATC magazines and the BL motor where necessary. The encoder's casing has a shaft. D6 type encoders are specifically suitable for DC servo axis systems, while the E and F type encoders can make 2048 revolutions per minute.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Okuma

Product Type

Absolute Position Encoder

Product Model

ER-JG-7200D

Function

Axis Speed and Position Feedback

Extra Feature

Multi-pole Resolver

Signal Input

5kHz Sine and Cosine

Clock Signal

81.92 Mhz

Pulse Count

16384 clock pulses per revolution

Feedback Signal Destination

OSP Control

Application

BL Motor, Hydraulic ATC Magazines

Shaft Inclusion

Yes

Applicable to DC Servo System

Only for Type D6

Rotations per Minute

2048 for Type E and F

Zero Reset

After 2048 Revolutions for Type E and F
