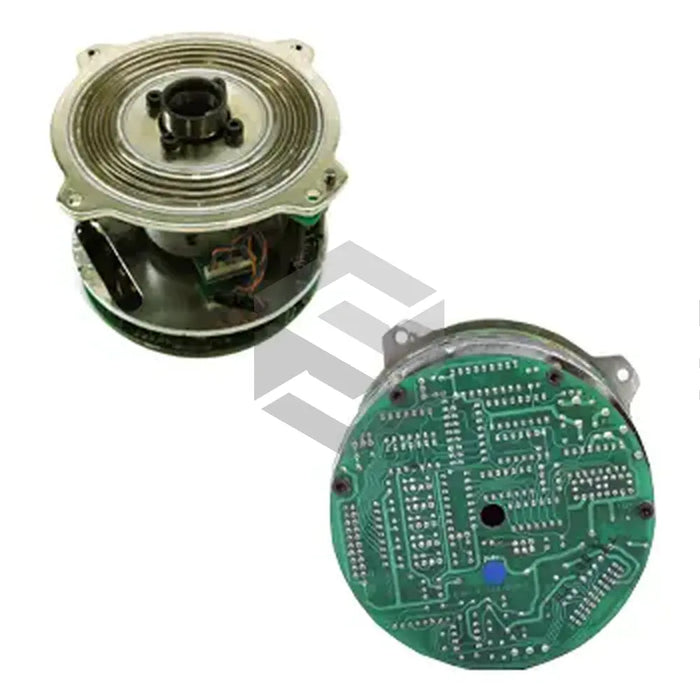

ER-JH-7200D

by Okuma
Original price $4,207.50 - Original price $4,207.50
Original price
$4,207.50
$4,207.50 - $4,207.50
Current price $4,207.50
In Stock, Ships Today
Request a quote
The ER-JH-7200D by Okuma, provides high-quality absolute position and axis feedback for OSP 5000 systems. The model integrates with various BL motor types, including the BLID, BLD, and BDU, amongst others. Its core features include a multipole resolver for optimal low and high digit positioning, with the ability to make over 2000 revolutions before resetting. The ER-JH-7200D finds uses in various automation features such as rotary tables and high-speed turrets. Furthermore, it can be fixed on hydraulically driven ATC magazines or physically attached to the BL motor. The encoder transmits a 5kHz sine and cosine signal to the MPR, aiding in precise positioning control. It exhibits a phase shift for every 36 degrees turned, translating to 16384 clock pulses per tenth revolution. In conclusion, the ER-JH-7200D provides high precision control in industrial automation settings.
30 Day Warranty
Technical Specifications
  • Manufacturer: Okuma
  • Product Model: ER-JH-7200D
  • Product Type: Absolute Position Encoder
  • Intended Use: Position Feedback and Axis Feedback
  • Compatibility: OSP 5000 Systems
  • Motor Compatibility: BL Motor Types (BLID, BLD, BDU)
  • Revolutions (Before Turnover): 2048
  • Application: Used in Rotary Tables and High Speed Turrets
  • Output Shaft Cycle: 7200 Revolutions per Cycle
  • Multipole Resolver: Equipped
  • Positioning: Lower Digit Positioning and Upper Digit Positioning
  • Attachment: Physically Attachable to BL Motor or ATC Magazines
  • Shaft Housing: Enclosed Casing
  • Signal Generation: 5kHz Sine and Cosine Signal to MPR
  • Clock Signal: Generated by CNC Control
  • Rotation: 360 Degrees per 36 Degree Shaft Turn
  • Clock Pulses: 16384 per Tenth Revolution
  • Phase Shift Rotation: E8-1 Rotor Rotates One Position per 360 Degree Phase Shift
