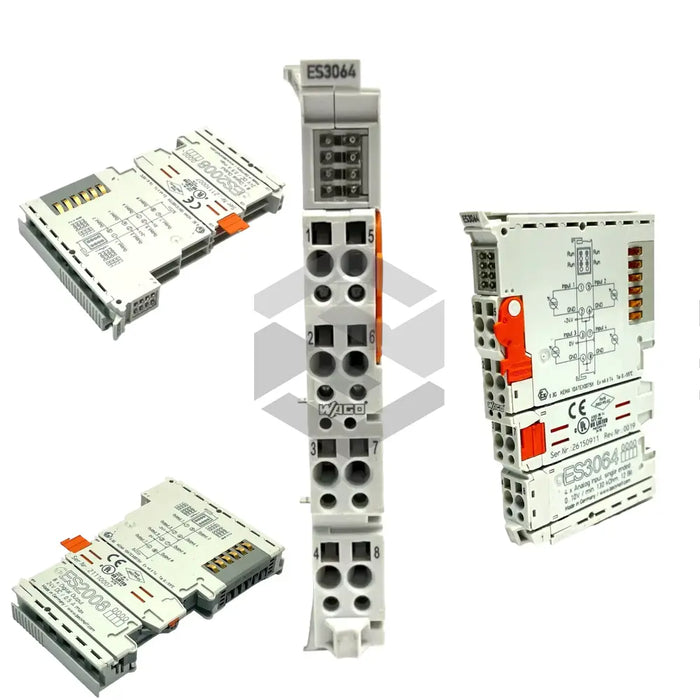

S image of ES3064

ES3064

by Beckhoff
$589.46 - $589.46
$589.46
$589.46 - $589.46
$589.46

In Stock, Ships 1 - 3 Days

The ES3064 from Beckhoff features 4 single-ended inputs and a signal voltage range of 0 to 10 V. Part of the ES EtherCAT Terminals series, this terminal provides 12-bit resolution, a typical E-bus current consumption of 130 mA, and a dielectric strength of up to 30 V.

It digitizes inputs in 0.625 ms, features an input filter limit frequency of 1 kHz, and has an internal resistance greater than 130 kΩ. The terminal operates across an -25 to +60 °C ambient temperature range and supports activatable FIR/IIR filters.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Approvals/markings

CE, CCC, UL, ATEX, IECEx

Bit Width In The Process Image

inputs: 16 byte

Conversion Time

0.625 ms default setting, configurable, multiplex

Current Consumption E-bus

typ. 130 mA

Dielectric Strength

max. 30 V

Input Filter Limit Frequency

1 kHz

Internal Resistance

> 130 kΩ

Manufacturer

Beckhoff Automation

Measurement Error/uncertainty

< ±0.3% (relative to full scale value)

Number Of Inputs

4 (single-ended)

Operating Temperature

-25…+60°C

Power Supply

via the E-bus

Resolution

12 bit (16 bit presentation incl. sign)

Signal Voltage

0…10 V

Special Features

activatable FIR/IIR filters, limit value monitoring
