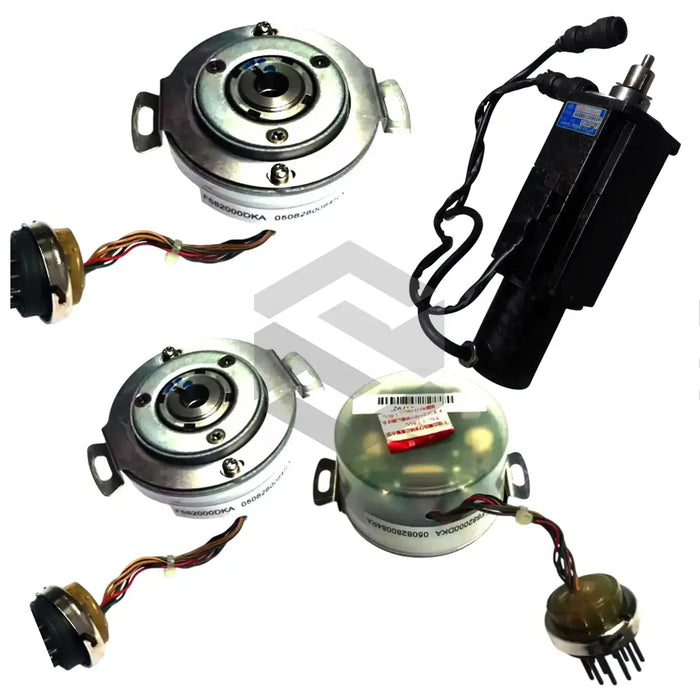

F681024DD71

The Sanyo Denki F681024DD71 encoder is a single-turn device in the High Accuracy Absolute Encoders series designed for industrial automation requiring precision positional feedback and reliable signal integrity. This absolute encoder delivers stable operation at 230 V supply voltage and 50/60 Hz frequency, ensuring compatibility with typical industrial power systems. Its optical non-contact encoder design provides high-resolution shaft positioning without mechanical wear, enabling sustained accuracy over extended service intervals. The F681024DD71 integrates a shaft-mount configuration and a standard industrial connector to simplify installation on rotary equipment and drive assemblies.

The encoder’s core specifications include Voltage: 230 V input, Current: 10 A draw, and Power: 2.3 kW handling capability, with an overall Efficiency: 85% that optimizes energy use in continuous-operation environments. It carries a CE Approved certification for compliance with international safety standards and is backed by a One-year warranty for quality assurance. The optical non-contact encoder type ensures signal integrity, while the output provides Square wave A and B phase signals compatible with most motion controllers and PLC feedback interfaces. Logic voltage support spans 5 V or 24 V, offering flexibility in control system architectures. Additional technical features include a robust enclosure that prevents external contamination, standard industrial connector interface, and specified storage conditions for reliable long-term performance.

Operationally, the F681024DD71 achieves balanced performance by combining 230 V rated supply stability with non-contact optical detection for minimal signal degradation at high speeds. Its square wave quadrature output ensures clean digital feedback, reducing interpolation errors in motion control loops. The shaft-mount design and standard connector enable rapid retrofit into existing systems, while the enclosure protection enhances durability in dusty or humid factory floors. Supported by an 85% efficiency rating, the encoder minimizes power losses and helps maintain system thermal management. With a 10 A current capacity and CE certification, it meets rigorous industrial use demands while ensuring safe, uninterrupted operation.

System integration is straightforward through universal quadrature inputs on common motion controllers, making the F681024DD71 suitable for packaging machinery, automated material-handling systems, and high-precision positioning tables. Its compatibility with both 5 V and 24 V logic levels streamlines interface design across diverse automation platforms. The durable enclosure and optical non-contact mechanism deliver extended maintenance intervals and high uptime, critical for continuous production lines. As part of the High Accuracy Absolute Encoders series, this Sanyo Denki model is optimized for applications where reliable, high-resolution rotational feedback is essential for process accuracy and repeatability.
