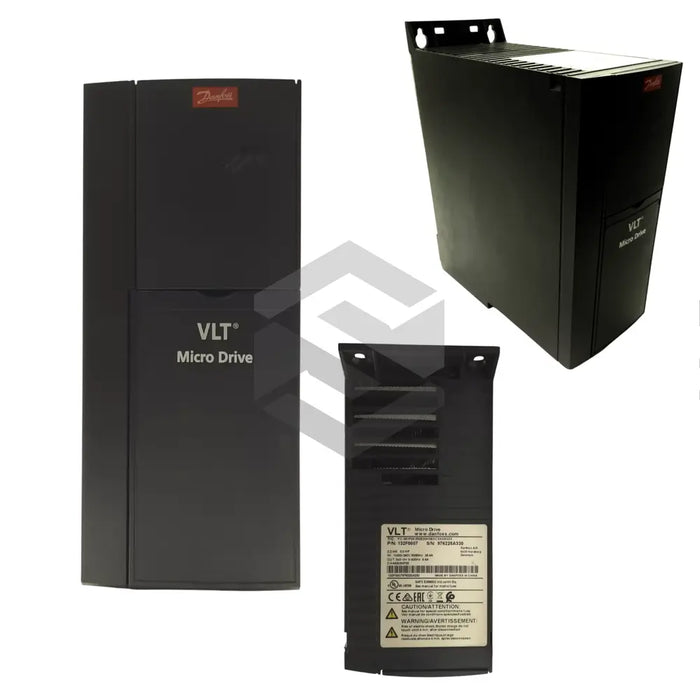

FC-051PK37T4E20H3XXCXXXSXX

The FC-051PK37T4E20H3XXCXXXSXX micro drive from Danfoss is a compact and versatile solution within the VLT FC 51 Micro Drives series, engineered for precise motion control in industrial applications. This unit delivers a Power Size of 0.37 kW at a Voltage of 200–240 V (single-phase), ensuring reliable performance on standard power supplies. Enclosed in a space-saving Enclosure Size K1 housing, the drive measures Length 210 mm, Width 75 mm, and Depth 168 mm, with a lightweight construction of Weight 2.5 kg. Rated to IP20 Protection Rating, it features a Color black coated PCB and housing that combine durability with aesthetic uniformity. The design supports a rugged Ambient temperature range from –25 to 50 °C, making it suitable for varied operational environments.

This drive’s technical capabilities include an Integrated RFI Filter that significantly reduces electromagnetic interference, meeting industrial noise suppression requirements. With an overall Efficiency of 0.965, the FC-051PK37T4E20H3XXCXXXSXX optimizes energy conversion and minimizes losses. It offers Motor compatibility as motor-independent, allowing seamless pairing with diverse motor types. The drive’s mounting footprint is streamlined, featuring fixed Mounting Hole A spacing of 198 mm and Mounting Hole B spacing of 60 mm for secure, repeatable installations. Side-by-side configuration is enabled, provided adequate ventilation, and the robust Protection Rating IP20 interior safeguard maintains component integrity.

Operational features include built-in Process PI Controller functionality, eliminating the need for external control hardware while delivering precise closed-loop regulation. Advanced Automatic Motor Tuning adapts the drive to various motor parameters, unlocking full performance potential without manual calibration. The Automatic Energy Optimizer dynamically adjusts control algorithms to reduce energy consumption and maintain optimal torque output. For short-term overloads, the converter can generate up to 150% torque for one minute, ensuring reliable startup and transient performance. Heat management is handled by a small integrated air blower that forces ventilation over heat-generating components, and the coated housing promotes extended lifespan even in dust-prone environments.

Integration of the FC-051PK37T4E20H3XXCXXXSXX into automation systems is straightforward thanks to its compact VLT FC 51 Micro Drives form factor and standardized electrical connections. The drive’s side-by-side mountability and minimal penetration of dust via sealed cable entries simplify cabinet design and maintenance procedures. Ideal use cases span conveyor systems, packaging machinery, material handling, and other industrial automation setups where precise speed and torque control are critical. Its robust construction, intelligent control features, and flexible mounting options make it a reliable building block for modern automated processes.
