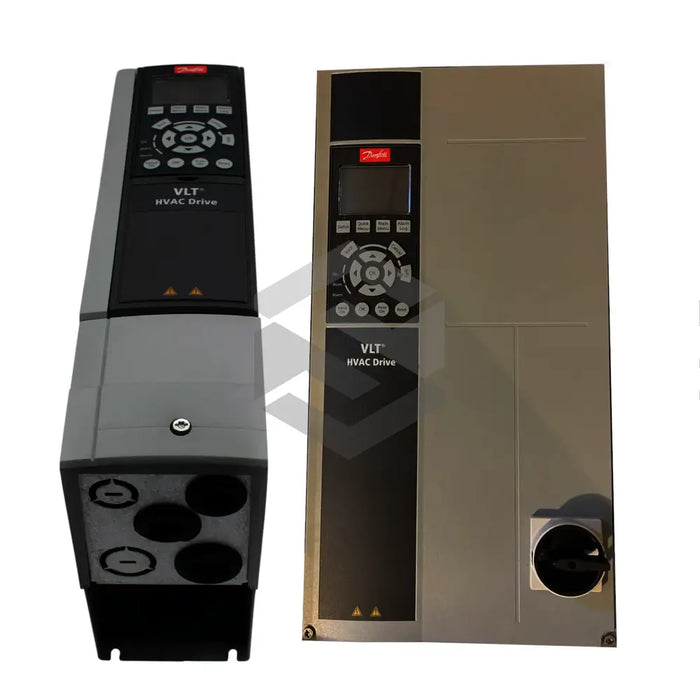

FC-102P11KT4E20H1XG

The FC-102P11KT4E20H1XG is a precision-engineered HVAC drive by Danfoss from the VLT FC 102 HVAC Drives series, designed to optimize industrial climate control systems. This model features a Nominal Input Current of 22A and a Motor Full Load Current of 24A, supporting motors rated up to 11 kW (15 HP). With an Efficiency Class of IE2 (97.5%), it ensures energy savings and reduced operational costs. The compact Dimensions of 420×165×249 mm and a lightweight chassis at Weight 12.0 kg allow for straightforward installation in standard control panels. The drive’s enclosure delivers IP20 protection, safeguarding internal components from ingress while maintaining service accessibility.

Featuring robust electrical performance, the Danfoss FC-102P11KT4E20H1XG accepts a Mains Voltage input of 380–480 VAC at 50/60 Hz across a Three Phase Power network. It delivers an Output Apparent Power At 400V of 16.6 kVA and sustains a Motor Rated Current of 26.4 A. The built-in RFI Filter (Class A1/B (C1)) suppresses electromagnetic interference, ensuring compliance with industrial standards and protecting adjacent equipment. Despite the absence of a Brake - Safe Stop chopper, the drive maintains stable deceleration profiles via advanced software controls. Its Power Rating of 11 kW and nominal characteristics enable versatile operation in a wide range of HVAC installations.

Operational efficiency is further enhanced by the integrated Graphical Loc. Cont. Panel (LCP), which provides intuitive parameter setup, real-time diagnostics, and clear status feedback. The drive’s Mounting options—Normal cabinet mounting on A, B, or C frames—facilitate flexible placement within electrical enclosures. Thermal management balances compactness with performance; the Maximum Power Loss of 324 W allows for consistent heat dissipation without auxiliary cooling. A robust Protection Level of IP20 ensures internal electronics remain dust-free while permitting adequate ventilation. Together, these features deliver reliable, low-maintenance operation in demanding industrial environments.

Integration of the FC-102P11KT4E20H1XG into existing HVAC systems is seamless, leveraging its standard footprint and connection topology to accelerate project timelines. As part of the VLT HVAC Drive Product Group and carrying the Series Identifier 102, it aligns with Danfoss’s ecosystem of controllers and remote modules, enabling cohesive automation strategies. Its compatibility with 11 kW motors ensures a broad spectrum of applications—from air handling units to chilled water pumps—benefiting commercial buildings and process facilities alike. Engineers will appreciate the drive’s straightforward commissioning and scalability within multi-drive configurations, reinforcing its position as a versatile solution for modern industrial automation.
