FC-102P2K2T4E20H1XXXXXXSXXXXAGBXCXXXXDX
by Danfoss

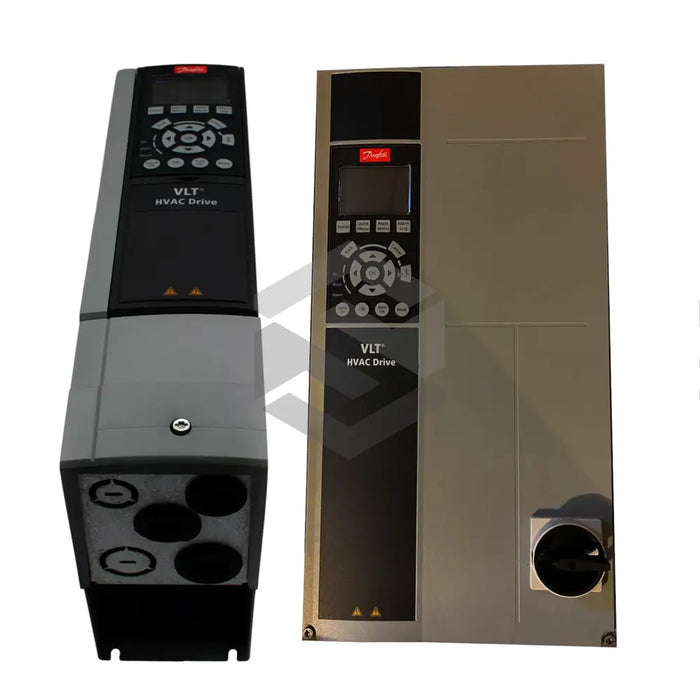

The Danfoss FC-102P2K2T4E20H1XXXXXXSXXXXAGBXCXXXXDX variable frequency drive is a specialized solution in the VLT FC 102 HVAC Drives series by Danfoss. With a robust 45 A current rating and dual-frequency capability at 50/60 Hz, this drive is optimized for precise speed and torque control of HVAC equipment such as pumps, fans, and compressors. Its advanced motor management algorithms ensure smooth acceleration and deceleration across varying load profiles, reducing mechanical stress and improving overall system responsiveness.
This drive features six programmable digital inputs configurable for PNP or NPN logic, enabling seamless integration with a wide range of industrial sensors and control devices. Two programmable pulse inputs accept 0-24 VDC signals with up to 110 kHz accuracy, allowing high-resolution speed feedback and synchronization in multi-drive installations. Additionally, it provides two programmable relay outputs rated at 240 VAC, 2 A and 400 VAC, 2 A for direct control of auxiliary equipment. The analog interface supports both voltage inputs from 0 to +10 V and current inputs from 0/4 to 20 mA (scalable), offering flexible connectivity to temperature, pressure, or flow transducers.
Encased in a compact housing measuring 405 x 180 x 75 mm and weighing just 3.2 kg, the FC-102 drive delivers high power density while minimizing panel space requirements. Its Class B isolation rating ensures reliable insulation and immunity to electrical noise, safeguarding downstream electronics and reducing interference within control cabinets. The drive’s thermal design maintains stable operation in harsh ambient conditions, extending component life and reducing maintenance. In industrial automation environments, this drive enhances energy efficiency, elevates process control precision, and lowers total cost of ownership through reduced downtime and simplified integration.
