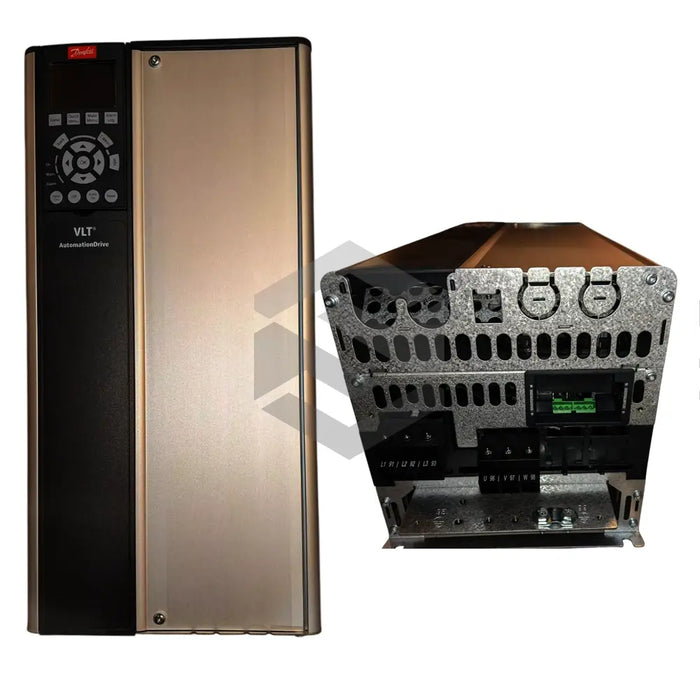

S image of FC-302N315T5135X4732H2BGXXXXSXXXXAXBXCXXXXDX

FC-302N315T5135X4732H2BGXXXXSXXXXAXBXCXXXXDX

by Danfoss
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The FC-302N315T5135X4732H2BGXXXXSXXXXAXBXCXXXXDX drive by Danfoss is a high-performance frequency inverter in the VLT FC 302 Automation Drives series. Designed to operate on 200-240 VAC, this compact unit measures 200x150x100 mm and weighs just 3 kg. The drive delivers a rated power of 500 W and a speed of 3000 RPM, achieving an efficiency of 85% under typical operating conditions. Its primary function is to control three-phase induction motors in demanding industrial automation applications, ensuring precise speed and torque management while reducing energy consumption.

In terms of technical specifications, the FC-302N315T5135X4732H2BGXXXXSXXXXAXBXCXXXXDX supports a frequency range of 50/60 Hz and features an ingress protection rating of IP55 for reliable operation in harsh environments. It offers two relay output connections: Relay 1 with terminals NC: 1-3 and NO: 1-2, and Relay 2 with break: 4-6 and make: 4-5. Motor cable connections can extend up to 150 m when screened or 300 m when unscreened, accommodating long-distance installations without signal degradation. The drive’s control terminals require a minimum conductor cross section of 0.25 mm² (24 AWG) and accept flexible wiring up to 1.5 mm² (16 AWG), rigid wiring up to 1 mm² (18 AWG), and collar end sleeves of 0.5 mm² (20 AWG), offering versatile connection options.

This frequency inverter is engineered for durability and compatibility in industrial settings. The IP55 protection rating, together with robust relay outputs and extensive cable length support, ensures resistance to dust, water spray, and electromagnetic interference. Its flexible wiring specifications enable seamless integration with various control panels and motor systems, while the high efficiency rating contributes to energy savings and lower operating costs. The precise speed control and reliable torque delivery enhance process stability, making the FC-302N315T5135X4732H2BGXXXXSXXXXAXBXCXXXXDX an ideal choice for automated production lines, conveyor systems, and other mission-critical industrial applications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Control Terminal Cross Section (Collar End Sleeves)

0.5 mm² (20 AWG)

Control Terminal Cross Section (Flexible)

1.5 mm² (16 AWG)

Control Terminal Cross Section (With End Sleeves)

1 mm² (18 AWG)

Dimensions

200x150x100 mm

Efficiency

85%

Frequency

50/60 Hz

Max Motor Cable Length (Screened)

150 m

Max Motor Cable Length (Unscreened)

300 m

Minimum Control Terminal Cross Section

0.25 mm² (24 AWG)

Operating Voltage

200-240 VAC

Protection Rating

IP55

Rated Power

500 W

Relay 1 Output Terminals

NC: 1-3, NO: 1-2

Relay 2 Output Terminals

Break: 4-6, Make: 4-5

Speed

3000 RPM

Weight

3 kg
