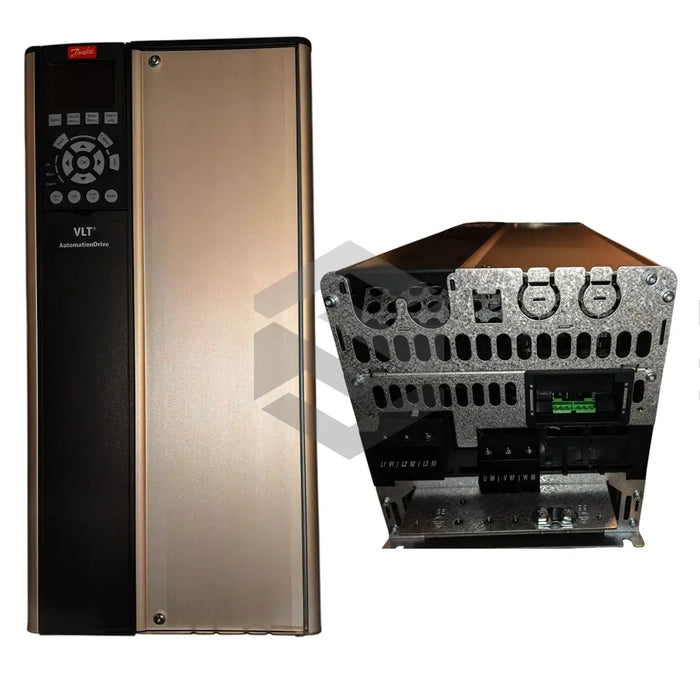

S image of FC-302P1K1T6131Z0489HXXGXXXXSXXXXAXBXCXXXXDX

FC-302P1K1T6131Z0489HXXGXXXXSXXXXAXBXCXXXXDX

by Danfoss
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The FC-302P1K1T6131Z0489HXXGXXXXSXXXXAXBXCXXXXDX drive by Danfoss is a high-performance frequency converter in the VLT FC 302 Automation Drives series engineered for industrial automation. This Frequency Inverter Drive features an output voltage range of 0–100% of the supply voltage and supports up to 590 Hz output frequency, with a reduced 0–300 Hz range in Flux Mode for enhanced control. It delivers a typical shaft output of 1.1 kW and a rated load of 2 HP, providing the power density required for demanding motor applications. Housed in a robust enclosure with IP20/IP21 protection rating, it ensures reliable operation in challenging factory environments.

The technical core of this frequency converter includes a 230 V input voltage interface compatible with a 525–600 V mains supply across 3-Phase power lines. It maintains a continuous kVA rating of 2.5 kVA at 525 V while handling a max. input current of 2.4 A (continuous) and 3.8 A (intermittent) at the upper end of its voltage range. The drive’s output current capability of 4.2 A (intermittent at 525–550 V) ensures robust torque delivery during peak loads. Dual phase detection via its Phases: 3 and Number Of Phases: 3-Phase architecture supports smooth drive performance, and its classification as a Type: Frequency Inverter Drive underscores its versatile application in variable-speed systems.

Operationally, the FC-302P1K1T6131Z0489HXXGXXXXSXXXXAXBXCXXXXDX excels with adjustable ramp times from 0.01 to 3600 seconds and unlimited switching on output, enabling precise acceleration and deceleration profiles. Its starting torque of 160% for 60 seconds in constant torque mode and 110% for 0.5 seconds in variable torque mode meet the dynamic demands of heavy loads. Rapid response is achieved with a torque rise time of 1 ms in FLUX mode and 10 ms in VVC mode, ensuring immediate reaction to load changes. The combination of high intermittent current capabilities and dependable continuous kVA supports sustained operation under fluctuating process conditions without derating.

Integration into industrial systems is streamlined by its compact footprint and modular design, allowing easy mounting alongside motors and control panels. The drive interfaces seamlessly with standard automation buses and fieldbus networks, enabling central monitoring and parameterization. Its advanced diagnostics, combined with the proven reliability of Danfoss engineering, make it ideal for applications such as conveyor drives, pump and fan control, mixing systems, and packaging machinery. The FC-302P1K1T6131Z0489HXXGXXXXSXXXXAXBXCXXXXDX offers a future-proof solution for any precision speed and torque control requirement.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Continuous kVA (525 V)

2.5 KVA

Input Voltage

230 V

Mains Supply

525 - 600 V

Max. Input Current (Continuous) (525-600 V)

2.4 A

Max. Input Current (Intermittent) (525-600 V)

3.8 A

Number Of Phases

3-Phase

Output Current (Intermittent) (525-550 V)

4.2 A

Phases

3

Rated Load

2 HP

Type

Frequency Inverter Drive

Typical Shaft Output


1.1 kW
