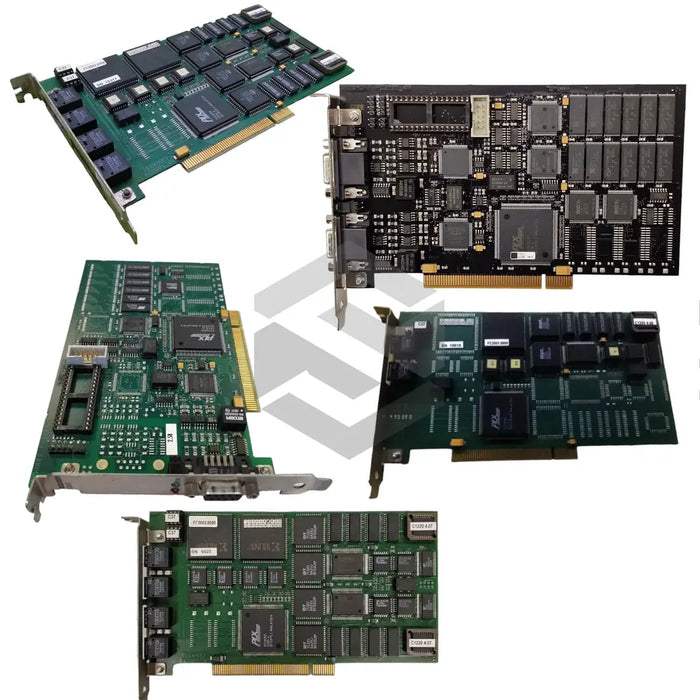

S image of FC5102-0000

FC5102-0000

by Beckhoff
$746.10 - $1,387.43
$746.10
$746.10 - $1,387.43
$746.10

In Stock, Ships Fast

The Beckhoff FC5102-0000, part of the FC Lightbus Card Series, is a dual-channel CANopen Lightbus card optimized for PC communication via PCI bus. It supports diverse CANopen network connections with data transfer speeds up to 1000 kbaud. Equipped with two optically isolated fieldbus ports with 9-pin D-sub connectors, it features unscrewable termination resistors for network customization. Each channel has two LEDs for status checks, enabling efficient troubleshooting. The card supports advanced bus monitoring, error management, and load readout, facilitating diagnostics and setup. Capable of handling 3 kbytes of input and output data per channel, it efficiently manages large data volumes. Designed for integration with any PCI slot, it operates in temperatures from 0 to +55 °C, suitable for general industrial environments. The card supports various CANopen PDO communication modes including event-driven and synchronous, and offers SDO communication, EMCY, guarding, and heartbeat functionalities, ensuring seamless synchronization with PC controllers.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Beckhoff

Product Name

FC5102-0000

Series

FC Lightbus Card Series

Channels

Dual-channel

Communication Standard

CANopen

Bus Type

PCI

Maximum Data Transfer Speed

1000 kbaud

Fieldbus Ports

2

Connector Type

9 pin D-sub

Optical Isolation

Yes

Termination Resistor

Unscrewing

LEDs per Channel

2

Data Management

3 kbytes each for input and output

Operating Temperature Range

0 to +55 °C

Dimensions

106 mm x 175 mm

PCI Slot Compatibility

Any PCI slots

PDO Communication Types

Event-driven, time-driven, synchronous, polling

Additional Features

SDO, EMCY, guarding, heartbeat, bus monitoring, bus load readout, reading bus configuration and node parameters
