FC7502

Name: FC7502
Brand: Beckhoff
Price: 1934.98 USD
Availability: InStock

by Beckhoff

$673.89 - $1,934.98

$673.89

$673.89 - $1,934.98

$673.89

In Stock, Ships 1 - 3 Days

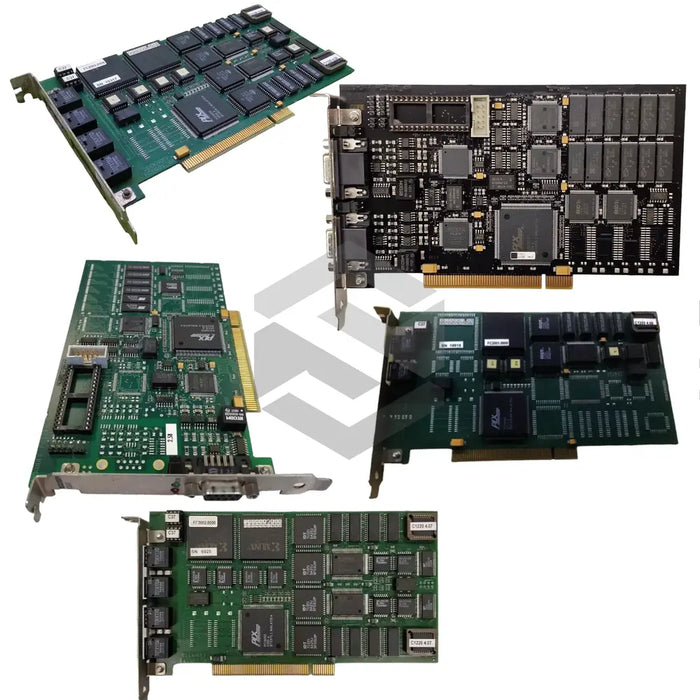

The Beckhoff FC7502 from the FC Lightbus Cards series is a PCI interface card designed for industrial automation, featuring two independent SERCOS II fieldbus channels with support for up to 254 max per channel devices. It delivers user-selectable data transfer rates of 2, 4, 8, or 16 Mbaud via four FSMA connectors (IEC 874-2) and provides hardware diagnostics through 1 LED per channel. The card offers direct DPRAM and register access via a Plug & Play, 32-bit PCI interface with TwinCAT I/O drivers, synchronization capability via ribbon cable, and operates reliably in temperatures from 0–55 °C. Measuring approximately 95 × 120 mm and drawing a typical current of 285 mA from the PCI bus, the FC7502 ensures compact, robust performance in demanding applications.

Contact Us

Email: sales@servosupplier.com

Phone Number: 1-888-551-3082

International: 1-919-443-0207

Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Bus devices

254 max per channel

Bus interface

4 FSMA connectors IEC 874-2

Current consumption

285 mA (typ.) from PCI bus

Cycle time

from 62.5 µs via SERCOS interface

Data transfer rate

2, 4, 8, 16 Mbaud

Dimensions

approx 95 × 120 mm

Driver

TwinCAT I/O and higher levels

Fieldbus

SERCOS II

Fieldbus channels

Hardware diagnostics

1 LED per channel

Operating temperature

0…55 °C

PCI interface

Plug & Play, 32-bit, direct DPRAM & register access

Synchronization

via ribbon cable between cards
