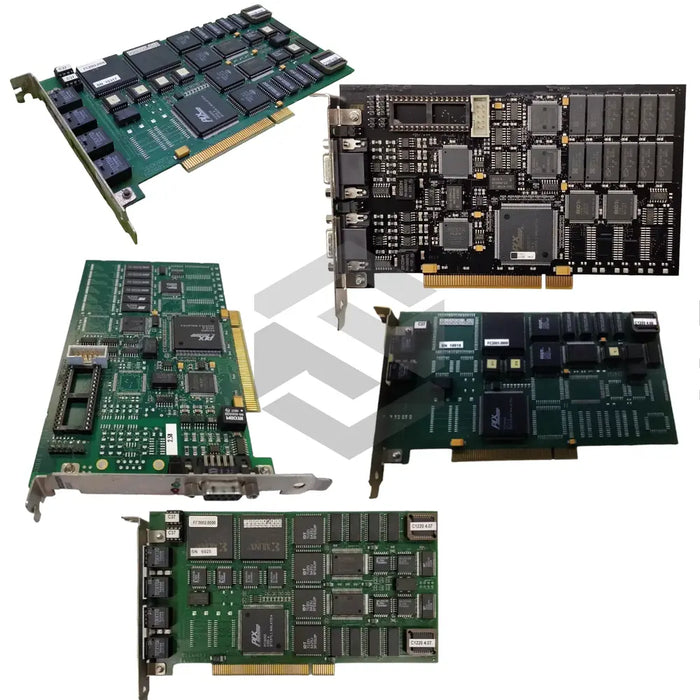

FC9001-0010
by Beckhoff
The Beckhoff FC9001-0010 Lightbus card, part of the FC Lightbus Cards series, delivers reliable Ethernet-based communication for demanding industrial automation applications. With a Data Transfer Rate of 10/100 Mbit/s, a 100BASE-T Ethernet interface, and support for all IEEE 802.3 protocols, it ensures seamless integration across diverse network topologies. Its primary function is to provide deterministic and high-speed data exchange via a standard PCI interface for PC-based control systems.
Equipped with a full duplex mode and a single 1 × RJ45 port, the FC9001-0010 maximizes throughput while minimizing collisions. It features hardware-integrated checksum creation and verification to guarantee data integrity during transmission. Quality of Service is managed through prioritized multiple queues, ensuring critical traffic is served first. TwinCAT EtherCAT real-time drivers per channel support synchronized and low-latency communication, while standard Beckhoff Windows drivers provide broad compatibility.
Built to endure harsh industrial environments, the card meets EN 60068-2-6, EN 60068-2-27, and EN 60068-2-29 standards for vibration and shock resistance. It operates reliably between 0 and 55 °C and accommodates cable lengths of up to 100 meters. Plug-and-play interface simplifies installation, and onboard hardware diagnostics with two LEDs per channel offer immediate status and activity feedback. Together, these features deliver enhanced efficiency, robustness, and uptime for complex automation systems.
