FCS01.1E-W0003-A-02-NNBV

Original price $1,305.00 - Original price $1,305.00
Original price
$1,305.00
$1,305.00 - $1,305.00
Current price $1,305.00
Available, Shipping Varies

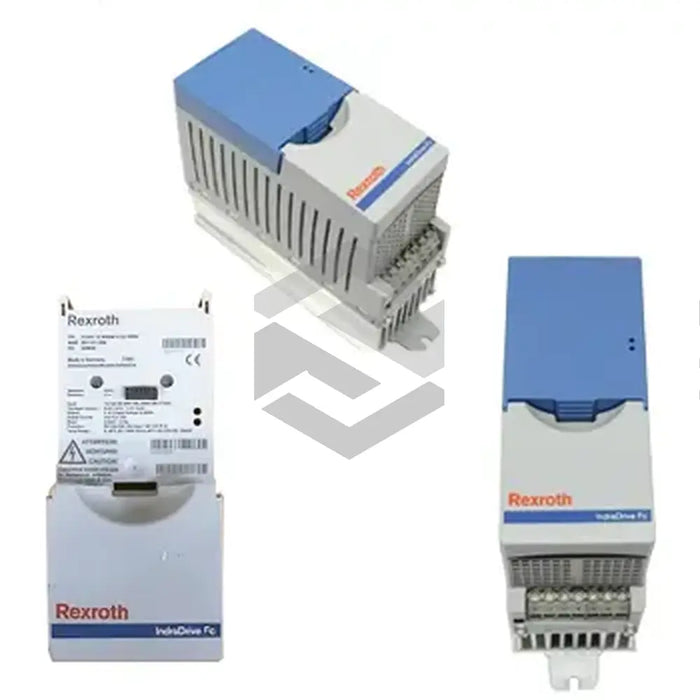

The FCS01.1E-W0003-A-02-NNBV from Bosch Rexroth Indramat, a leading producer of automation systems, is a premium frequency converter device under the IndraDrive series, distinguished for its sensor-less vector current control capability. This modular device is intentionally designed for controlling the speed and position in AC asynchronous motor operations. The converter ensures an ideal voltage to frequency ratio, enabling drives to operate with high starting and overload torques. It allows head-to-head installation without requiring extra space due to its thoughtful design. With exceptional control properties, the device accurately regulates motor speed and provides high start-up torque. It offers high overload capacity, tolerating 150% overload for 60 seconds and 200% overload for 3.5 seconds. Built from silicone and asbestos-free materials, it supports four-quadrant operation enabled by its built-in brake resistor. In addition, it identifies motor parameters automatically, provides four parameter logs, and allows online parameter switching. Additionally, it uses programmable DC braking to slow down connected machinery.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Frequency Converter
  • Product Series: IndraDrive
  • Product Model: FCS01.1E-W0003-A-02-NNBV
  • Control Operation: Speed and Position Control
  • Function: Maintains Optimum ratio of voltage to frequency
  • Feature: Sensor-less vector current control
  • Overload Capability: 150% for 60 seconds, 200% for 3.5 seconds
  • Material: Free from silicone and asbestos
  • Operation Mode: Four-quadrant operation
  • Brake Resistor: Integrated, also supports external brake resistor
  • Automation: Automatic identification of motor parameters
  • Parameter Records: Four, with online switching
  • Secondary Braking System: Programmable DC braking
  • Mounting: Can be mounted next to each other without additional space
