S image of FCS01.1E-W0003-A-04-NNBV

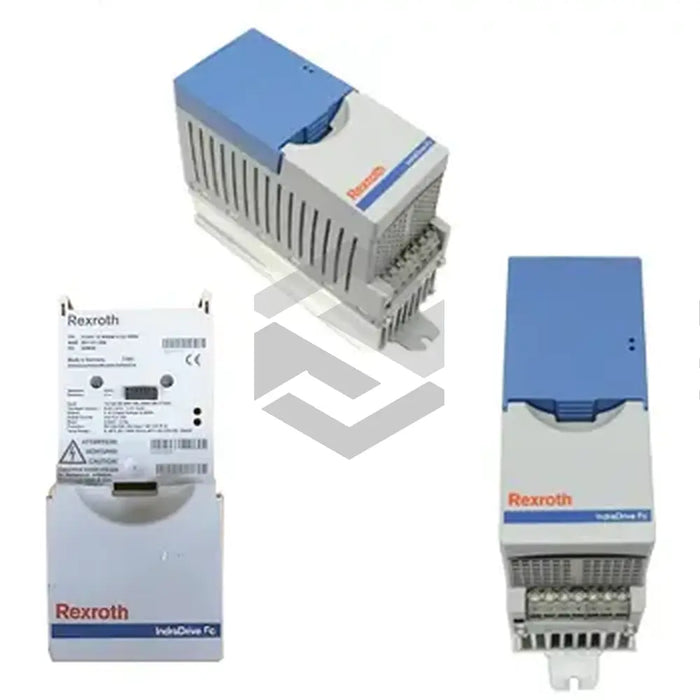

FCS01.1E-W0003-A-04-NNBV

by Bosch Rexroth Indramat
$960.25 - $960.25
$960.25
$960.25 - $960.25
$960.25

In Stock, Ships Fast

The FCS01.1E-W0003-A-04-NNBV frequency converter, manufactured by Bosch Rexroth Indramat, can be parameterized using a standard control panel with the ability to alter these parameters online. It provides a smooth user experience, and seamlessly integrates with a comfort control panel. Notably, upon start-up, the unit fully details the converter type, current state, and operating status. The device uses a Profibus module for data exchanges, and operates with a 3 x 380VAC to 480VAC mains voltage. With an impressive efficiency of nearly 95% and a weight of 1.4 kg, it also features free convection ventilation and is designed for commercial use. It utilizes an LPJ 10A mains fuse and is pre-programmed to work with 4-pole DS standard motors. A breaking resistor with a minimum resistance of 390 Ohms is incorporated, further demonstrating its optimized functionality. An RS 485 USS and RS 232 single slave interfaces are housed in the unit, providing simple and efficient control management.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

FCS01.1E-W0003-A-04-NNBV

Function

Frequency Converter

Control Panel Compatibility

Standard and Comfort

Data Exchange Module

Profibus

Voltage Requirements

3 x 380VAC to 480VAC

Efficiency

Approximately 95%

Interfaces

Standard RS 485 USS and a RS 232 Single Slave

Ventilation Type

Free Convection

Recommended Fuse

Slow Mains Fuse of 10A

Weight

Approximately 1.4kg

Overvoltage Category

3

Maximum Installation Altitude

2000m above Sea Level

Mains Voltage Reconnection

After 1 Year of Storage

Control Inputs

Two with 2A current Rating and a 28VDC/230VAC Voltage Rating

Output Current Reduction

When System Voltage is more than 400V and Output Frequency is less than 2Hz

Mains Fuse

LPJ 10A

Motor Compatibility

4-Pole DS Standard Motors

Braking Resistor

Minimum Resistance of 390 Ohms

Application

Commercial Use Only

Interface Protocol

Universal Serial

Function Module Slot Feature

Houses a Blind Cover in Basic State.
