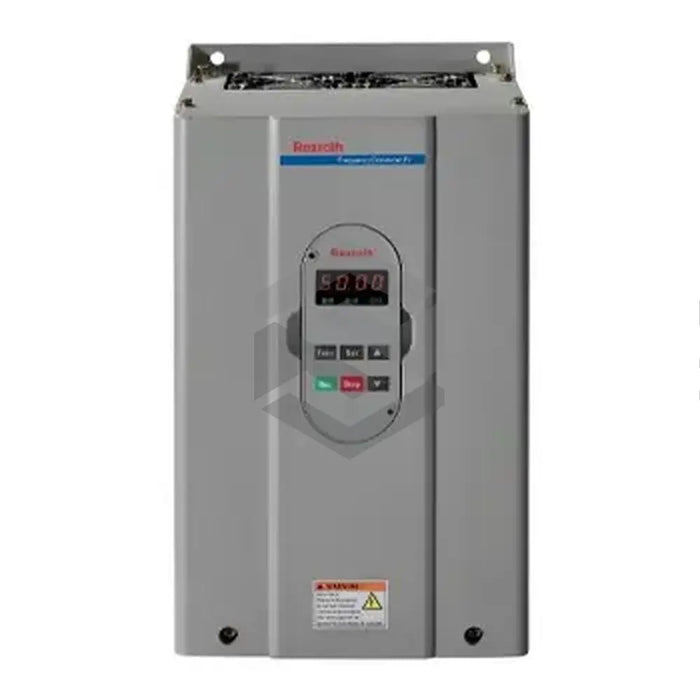

S image of FECG02.1-18K5-3P400-A-BN-MODB-01V01

FECG02.1-18K5-3P400-A-BN-MODB-01V01

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat FECG02.1-18K5-3P400-A-BN-MODB-01V01 is an all-encompassing industrial frequency converter from the renowned FECG series. Exhibiting exceptional performance, this model is highly compatible with harsh climates and specially formulated for use with a 3-phase AC 380 - 480 V (-15%/+10%) power source. With an operating frequency range of 50/60 Hz, and a robust overload bearing capacity, this converter enhances speed control across a 1:100 spectrum via its Voltage Frequency (V/f) control technology and naturally fluctuating PWM modulation range. Specifically planned for driving an 18.5 kW electric motor, the converter unit draws a consistent rated current of 39 A. Engineered for an operational temperature range of -10 to +40 degree Celsius, the product can thrive with up to 90% air humidity and at altitudes up to 1000 meters above sea level. Adhering to IP 20 protection standards, this device requires professional configuration prior to activation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

FECG02.1-18K5-3P400-A-BN-MODB-01V01

Product Type

Frequency Converter

Series

FECG

Operational Stability

High

Usage Environment

Harsh Climatic Conditions

Power Supply

3-Phase AC 380 - 480 V (-15%/+10%)

Operating Frequency

50/60 Hz

Overload Capacity

200% for 1 second, 150% for 60 seconds

Break Resistor Connection

Possible

Control Technology

Voltage Frequency (V/f)

Speed Control Range

1: 100

Modulation Type

Magnetic Flux PWM adjustable in the range of 1 - 8 kHz

Motor Power

18.5 kW

Continuous Rated Current

39 A

Operating Temperature

-10 to +40 degree Celsius

Air Humidity

Less than 90%

Maximum Installation Height

1000 meters/sea level

Protection Standard

IP 20

Configuration Requirement

Before commissioning
