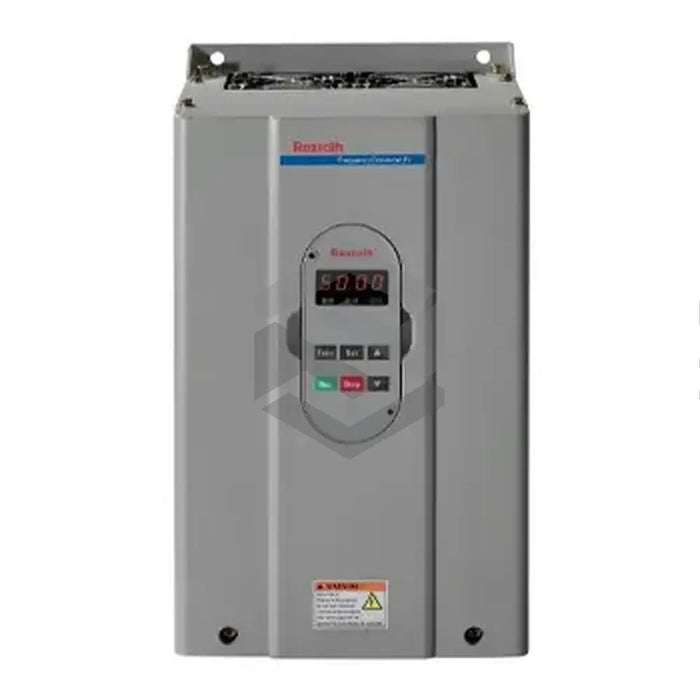

S image of FECG02.1-2K20-3P400-A-SP-MODB-01V01

FECG02.1-2K20-3P400-A-SP-MODB-01V01

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Produced by Bosch Rexroth Indramat, the FECG02.1-2K20-3P400-A-SP-MODB-01V01 is a frequency converter that uses a standard firmware version V-type. It uses magnetic flux PWM modulation, can withstand harsh environments, and operates within a frequency range of 0Hz-599Hz. Designed for U/f operation, the device measures 125 x 220 x 176 mm and can be securely mounted using M5 screws (4Nm torque). Accessible by removing two front screws, the device has an IP 20 degree protection. Its digital frequency output and multi-function analog outputs enhance its versatility. Cabling must be secure and fuses should be installed between the three-phase input power and main terminals to prevent damage. Failure may occur if fitted with a power capacitor, radio noise filter or a surge suppressor. With a non-groundable common terminal, this frequency converter is designed to be used with a servo drive and motor from the same manufacturer.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

FECG02.1-2K20-3P400-A-SP-MODB-01V01

Line Code

02

Firmware

V-type standard

Modulation Technology

magnetic flux PWM

Operating Mode

U/f

Phases

Three

Output Frequency Range

0Hz to 599Hz

Braking Mechanism

External braking resistance

Controller

PID

Communication System

ModBus

Size

125 x 220 x 176 mm (B x H x T)

Fastening Method

M5 screws with 4Nm tightening torque

Open Mechanism

By removing two screws in front, panel, front cover

Drive System Components

Servo drive, a motor from the same manufacturer

Degree of Protection

IP 20

Output Type

Digital frequency and multi-function analog outputs

Installation Requirement

Fit a fuse between the three-phase input power supply and the two main circuit terminals L1 and L2

Placement Requirement

Between an AC output choke and an AC filter

Common Terminals

Two, must not be grounded

Wiring Requirement

Cables must be tightened

Output Attachments

U, V and W outputs are connected to the motor.
