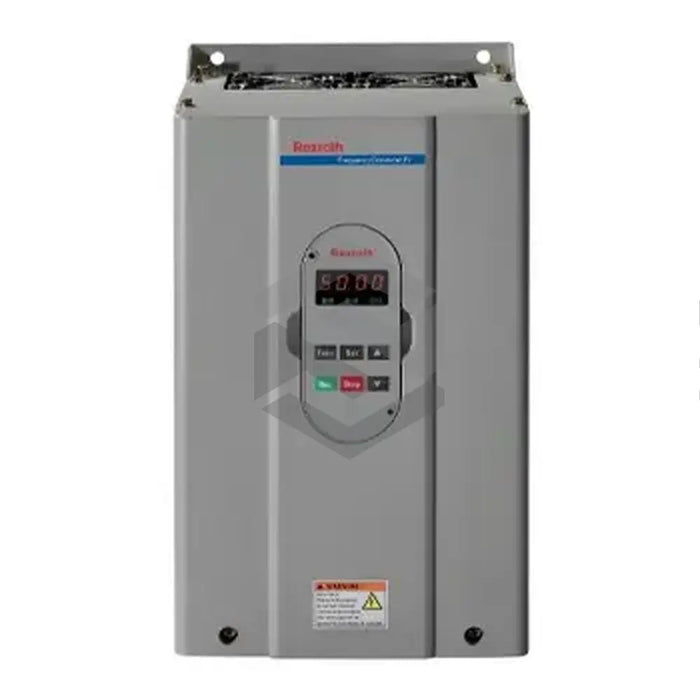

series image of FECG02.1-4K00-3P400-A-SP-MODB-01V01-S001

FECG02.1-4K00-3P400-A-SP-MODB-01V01-S001

by Bosch Rexroth Indramat
$2,669.25 - $2,669.25
$2,669.25
$2,669.25 - $2,669.25
$2,669.25
Available, Shipping Varies
The Bosch Rexroth Indramat FECG02.1-4K00-3P400-A-SP-MODB-01V01-S001 is a frequency converter notable for its multiple self-protecting measures, integrated brake chopper and broad performance spectrum. With an output power rating of 4 kilowatts and a continuous output current rating of 10 Amps, this converter is designed for connection to a three-phase AC at 400 Volts AC (50/60 Hertz). Key attributes include an overload capability of 120% for 60 seconds or 105% for 60 minutes, a small-sized control unit with a potentiometer, and Modbus communication support. It features a 4-digit LED for output current, output voltage, and frequency monitoring, and a status LED for displaying rotation direction and rotation status. The converter's housing has an IP20 protection rating with an operational temperature limit of -10 to 40 degrees Celsius. It weighs 3.2 kilograms and has dimensions of 220x125x176 mm. Please note, only qualified technicians should install the Bosch FE series frequency converters.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Frequency Converter
  • Product Model: FECG02.1-4K00-3P400-A-SP-MODB-01V01-S001
  • Output Power Rating: 4 Kilowatts
  • Continuous Output Current Rating: 10 Amps
  • Input Phase: Three-Phase AC
  • Input Voltage: 400 Volts AC (50 / 60 Hertz)
  • Overload Capability: 120% for 60 seconds or 105% for 60 minutes
  • Control Unit Size: Small
  • Control Communication: Modbus
  • Standard Firmware Version: 01
  • Firmware Release: 01
  • Housing Protection Rating: IP20
  • Operating Temperature: -10 to 40 Degrees Celsius
  • Maximum Operating Height: 100 Meters
  • PWM Frequency: 1 to 15 Kilohertz
  • Speed Control Range: 1:100 (without or with a pulse generator)
  • Control Technology: V/f
  • Acceleration-Deceleration Ramps: Linear and S-curve
  • Display: 4-digit LED
  • Status LED: Rotation Direction and Rotation Status
  • Device Weight: 3.2 Kilograms
  • Certifications: EN 61800-3 and UL 508 C
  • Dimensions: 220 x 125 x 176 Millimeters
  • Recommended Installers: Qualified Technicians
