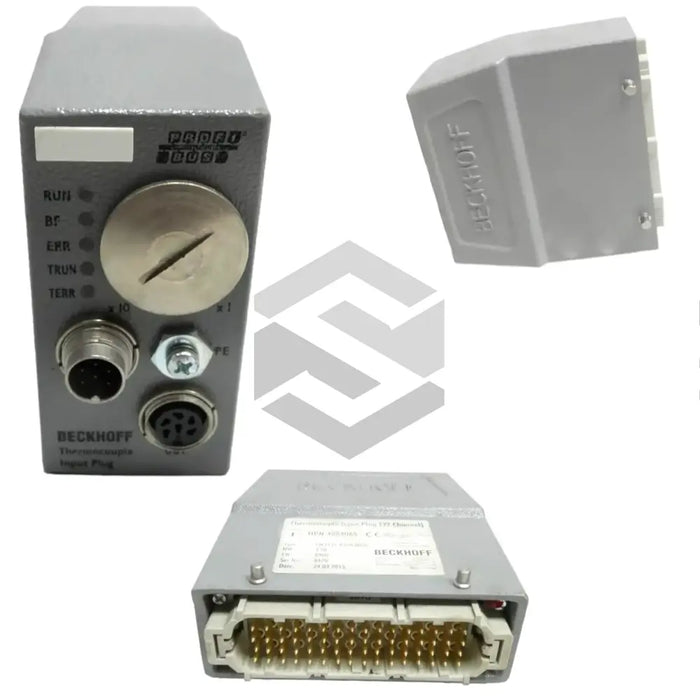

S image of FM3312-B110-0210

FM3312-B110-0210

by Beckhoff
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The FM3312-B110-0210 from Beckhoff is a high-density thermocouple module in the FM Thermocouplers series, designed for precise temperature measurement in demanding industrial environments. This module supports 12 thermocouple channels and offers a measuring range of -10 to +900°C for Type J sensors. Utilizing the EtherCAT fieldbus protocol at a data transfer rate of 100 Mbit/s, it ensures rapid and deterministic communication. With a resolution of 0.1°C per digit and measurement uncertainty of ±0.5% of full scale, the FM3312-B110-0210 delivers accurate and reliable readings across its full range. Its compact design and industrial UL approval make it a robust solution for process and machine automation.

Featuring advanced technical capabilities, the FM3312-B110-0210 achieves a conversion time of approx. 250 ms per channel, allowing for near-real-time monitoring. The module accommodates both Type J thermocouples & mV inputs, providing versatility for various sensor requirements. It offers 5 configurable input filter variants to optimize signal conditioning and mitigate noise in challenging environments. The unit’s maximum cable length of 30 m enables flexible installation in large-scale systems. With a typical current consumption of 120 mA and a maximum of 150 mA, power efficiency is maintained without compromising performance.

Operational features include dual M12 D-coded, 4-pin fieldbus connections for EtherCAT IN and OUT, facilitating modular expansion and straightforward system topology. Power is supplied and daisy-chained via an M8 plug (4-pin) input and M8 socket (4-pin) output, simplifying wiring and reducing cabinet clutter. The compact module design and configurable filters enhance noise immunity, ensuring stable readings even under high electromagnetic interference. The fast conversion cycle and high channel density improve process control responsiveness, while the UL approval underlines its suitability for global industrial applications.

Integration into automation systems is seamless, thanks to its EtherCAT compatibility and standardized industrial plug-in connectors. The FM Thermocouplers series modules can be chained for scalable channel expansion, ideal for temperature profiling in machine tools, ovens, and environmental chambers. With a wide power supply voltage range of 24 V DC (-15%/+20%) and rugged Han24E thermocouple connections, this module integrates easily into existing control architectures. The FM3312-B110-0210 stands out as a flexible, high-performance solution for precise temperature monitoring and control in advanced industrial automation applications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Cable Length

max. 30 m

Channels

12 thermocouple channels

Conversion Time

approx. 250 ms

Current Consumption

120 mA typ / 150 mA max

Data Transfer Rate

100 Mbit/s

Fieldbus Connection

2 x M12 D‑coded, 4‑pin

Fieldbus Protocol

EtherCAT

Input Filter

5 configurable variants

Measurement Uncertainty

<±0.5% of full scale

Measuring Range (Type J)

-10 to +900°C

Power Connections

feed: M8 plug, 4-pin; downstream: M8 socket, 4-pin

Power Supply Voltage

24 V DC (-15%/+20%)

Resolution

0.1°C per digit

Sensor Types

Type J thermocouples & mV

Thermocouple Connection

Han24E industrial plug‑in

UL Approval

UL approved
