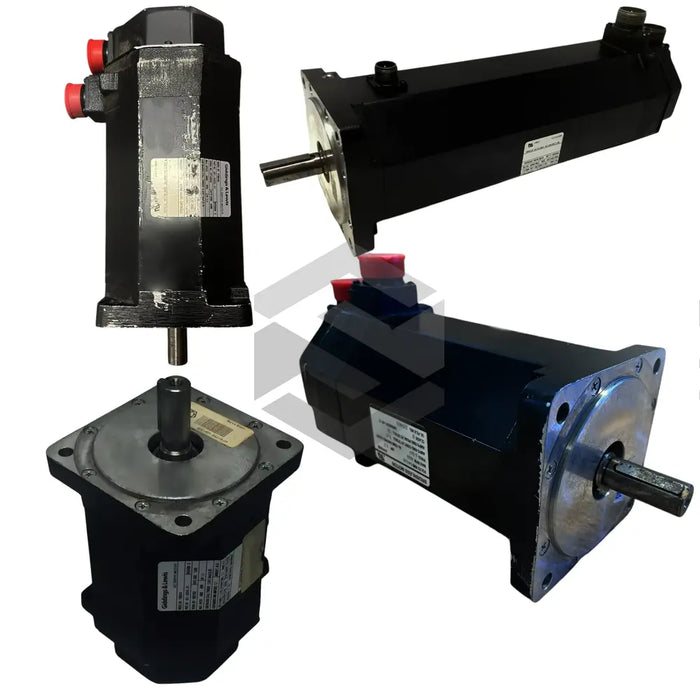

S image of FSM490

FSM490

by Kollmorgen
$3,106.67 - $8,224.00
$3,106.67
$3,106.67 - $8,224.00
$3,106.67

In Stock, Ships 1 - 3 Days

The Kollmorgen FSM490 from the FSM Brushless Servo Motors series by Kollmorgen is an 8-pole brushless servo motor featuring a rotor moment of inertia of 0.0011 kg-m2 and a sine wave torque constant of 0.54 Nm/A, delivering precise torque control. It achieves a maximum operating speed of 4000 rpm and operates reliably within 0 to 40 degrees C. Designed for efficient thermal management, it has a thermal resistance of 0.63 degrees C/Watt and damping of 0.06 Nm/krpm. With a friction torque of 0.063 Nm, a voltage constant of 66 V/krpm, winding inductance of 6.8 mH and winding resistance of 2.24 Ohms, this unit weighs 20 lb, offering compact performance for demanding industrial applications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Brake Motor Shipping Weight

kg 10.9, lb 24

Damping

Nm/krpm .06, lb-in/krpm .5

Friction Torque

Nm .063, lb-in .56

Max. Operating Speed

4000 rpm

Motor Shipping Weight

kg 9.1, lb 20

Operating Temperature

0 to 40 degrees C

Poles

8

Rotor Moment Of Inertia

kg-m2 .0011, lb-in-s2 .010

Sine Wave Torque Constant

Nm/A .54, lb-in/A 4.8

Square Wave Torque Constant

Nm/A .60, lb-in/A 5.3

Storage Temperature

-30 to 70 degrees C

Thermal Resistance

oC/Watt .63

Voltage Constant

V/krpm 66

Winding Inductance

mH 6.8

Winding Resistance

Ohms 2.24 ~15%
