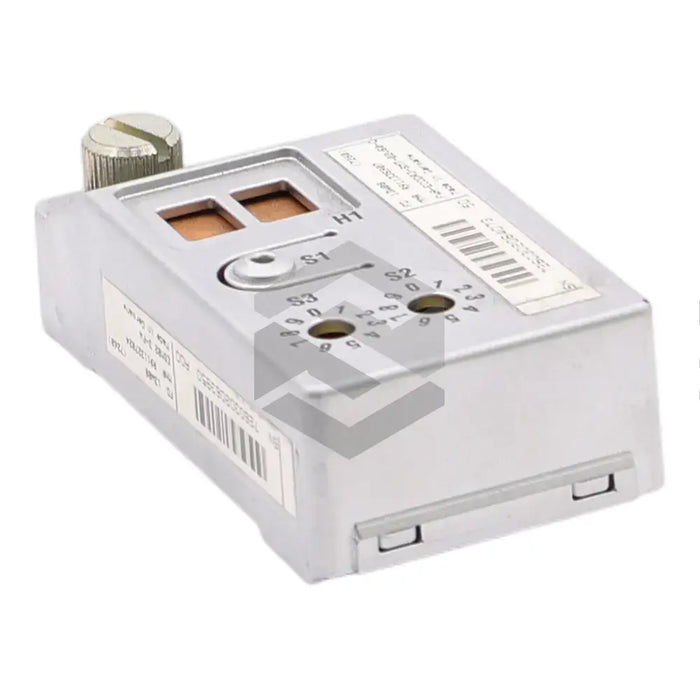

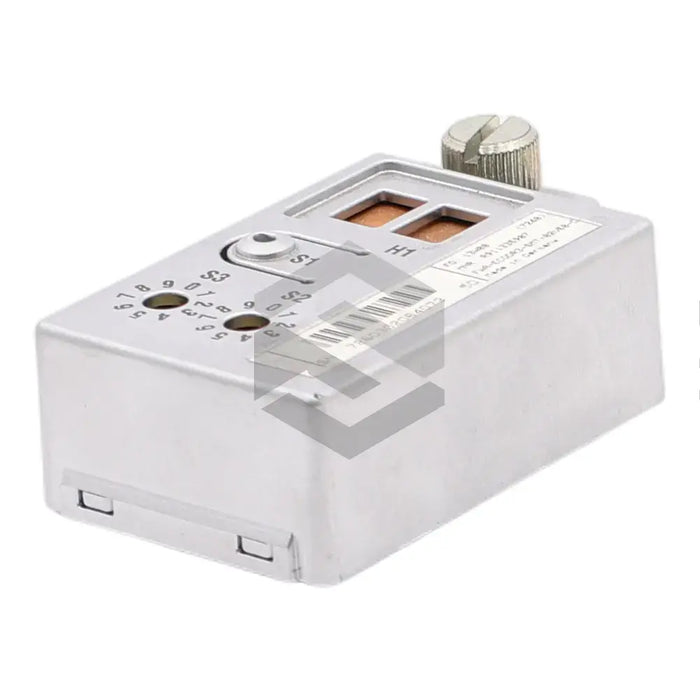

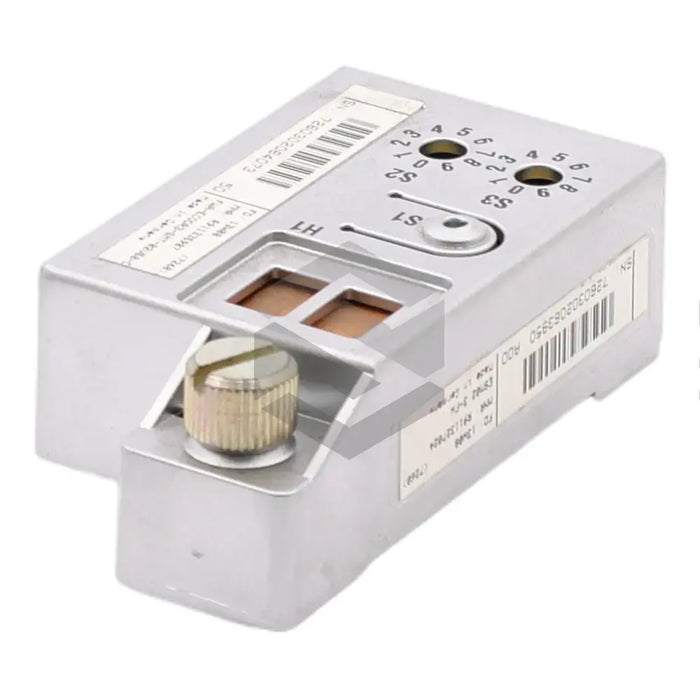

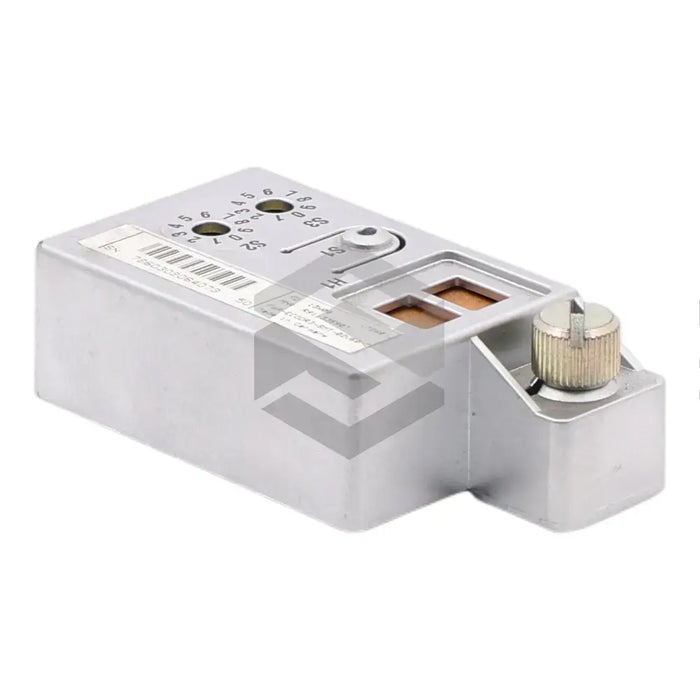

C image of FWA-ECODR3-SMT-02V50-D5 | Main (Front Left)

FWA-ECODR3-SMT-02V50-D5

by Bosch Rexroth Indramat
$1,789.00 - $1,789.00
$1,789.00
$1,789.00 - $1,789.00
$1,789.00

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat's FWA-ECODR3-SMT-02V50-D5 is a firmware, especially designed for industrial machine tools. It interacts with ECODRIVE03 drive controllers by Rexroth, which offer interfaces for analog, parallel and SERCOS. This firmware is housed on a separate module that is insertable into the drive, preventing the need to reconfigure replacement drives and speeding up maintenance. The firmware is not included with the drive and must be ordered separately. ECODRIVE03 drives come in 40, 100, and 200 Amps variants, accepting 200 to 480 Volts AC single-phase or three-phase inputs. They output three phases up to 800 Volts at a maximum frequency of 1000 Hertz. Control electronics require an external 24 Volts power supply. The short circuit current rating stands at 42000 Amps. Installation should consider 150mm spacing above and 80mm below the drive for adequate cooling.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Firmware

Compatible Devices

Rexroth ECODRIVE03 drive controllers

Interfaces

Analog, Parallel, SERCOS

Replacement Feature

Yes

Order Separately

Yes

Available Output Current Ratings

40 Amps, 100 Amps, 200 Amps

Input Voltage Range

200 to 480 Volts AC

Supported Inputs

Single-phase and three-phase

Input Frequency Range

50 to 60 Hertz

Max Output Voltage

800 Volts

Output Phases

Three

Max Output Frequency

1000 Hertz

External Supply Requirement

24 Volts for control electronics

Control Electronics Power Consumption

21 Watts (40 Amps Drive), 29 Watts (200 Amps Drive)

Short Circuit Current Rating

42000 Amps

Max Ambient Temperature

45 degrees Celsius

Spacing Requirement

150 millimeters above, 80 millimeters below

Air Flow Requirement

Yes for cooling.
