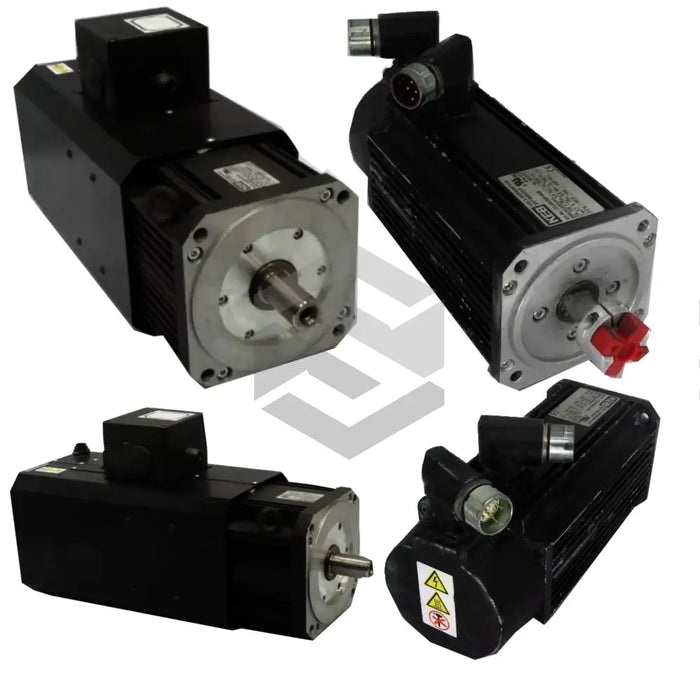

The KEB G2.2A-DK90L4TS is a precise synchronous servo motor from the SM Synchronous Servo Motors series. It delivers 2.2 kW power and 7 Nm torque at a rated speed of 3000 RPM with a max speed of 5000 RPM. Featuring IP65 protection, 230V AC operation, multi-turn absolute encoder feedback, and a compact 90 mm frame.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Cooling method
Natural convection
Current
6.5A
Feedback device
Multi-turn absolute encoder
Frame size
90 mm
Max speed
5000 RPM
Operating temperature
-20°C to 40°C
Peak torque
21 Nm
Protection rating
IP65
Rated power
2.2 kW
Rated speed
3000 RPM
Shaft diameter
24 mm
Torque rating
7 Nm
Type
Synchronous Servo Motor
Voltage rating
230V AC
Weight
10 kg
