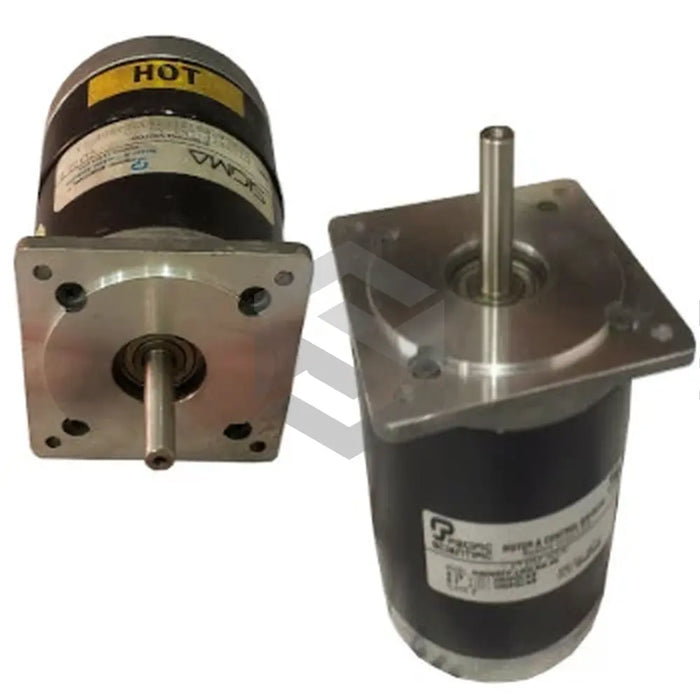

S image of H22NRHC-JNN-NS-00

H22NRHC-JNN-NS-00

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The H22NRHC-JNN-NS-00 is a hybrid motor manufactured by Kollmorgen in the H Hybrid Motors series. It features a NEMA 34 frame size with standard double shaft configuration, delivers 239 oz-in holding torque, and runs at 8.4 A per phase. With thermal resistance of 3.9 °C/W, splash proof construction, 0.0083 oz-in-s² rotor inertia, a 0.5" shaft diameter, and optional encoder mounting, it suits demanding industrial automation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Conduit Connection Type

PG 11 TAP (No insulating bushing supplied)

Encoder Mounting

Option Available

Frame Size

NEMA 34

Front Shaft Configuration

Standard Double Shaft Configuration

Holding Torque

239 oz-in [1.69 Nm]

Maximum Diameter

3.875 inches [98.43 mm]

Maximum Length (l1)

6.73 inches [170.94 mm]

Mounting Configuration

Standard NEMA Front End Bell

Rated Current Per Phase

8.4 Amps (Parallel Configuration)

Rotor Inertia

0.0083 oz-in-s² [0.0586 kg-m² x 10⁻³]

Shaft Diameter

0.5 inches [12.7 mm]

Shaft Loading, Axial Force

35 lbs [156 N]

Shaft Loading, Radial Force

180 lbs [801 N]

Splash Proof Construction

Available

Thermal Resistance

3.9 °C/Watt
