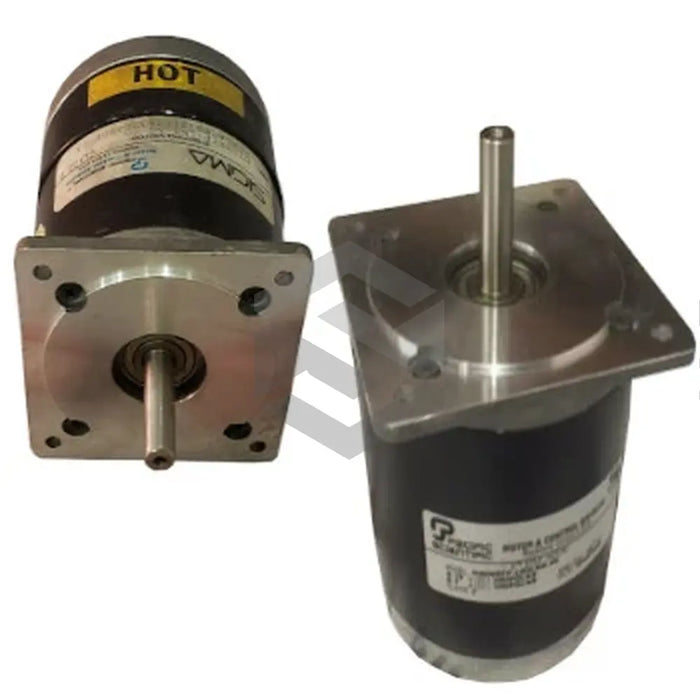

H31NRLP-LNN-NS-00
by Kollmorgen
{"paragraphs":["
The H31NRLP-LNN-NS-00 from Kollmorgen delivers a holding torque of 239 oz-in (1.69 Nm) and features a NEMA 34 frame size. Part of the H Hybrid Motors series, it supports axial forces up to 180 lb (801 N) and has IP65 housing protection. The motor weighs 3.2 lb (1.45 kg) and utilizes lead wire hookup construction.
","It offers phase resistance of 0.13 Ohms, phase inductance of 1.0 mH, and optional encoder mounting. Rated current per phase is 8.4 Amps DC. Thermal resistance is 3.9 °C/Watt when mounted.
"]}
