H33HLEC-LNK-NS-00
by Kollmorgen

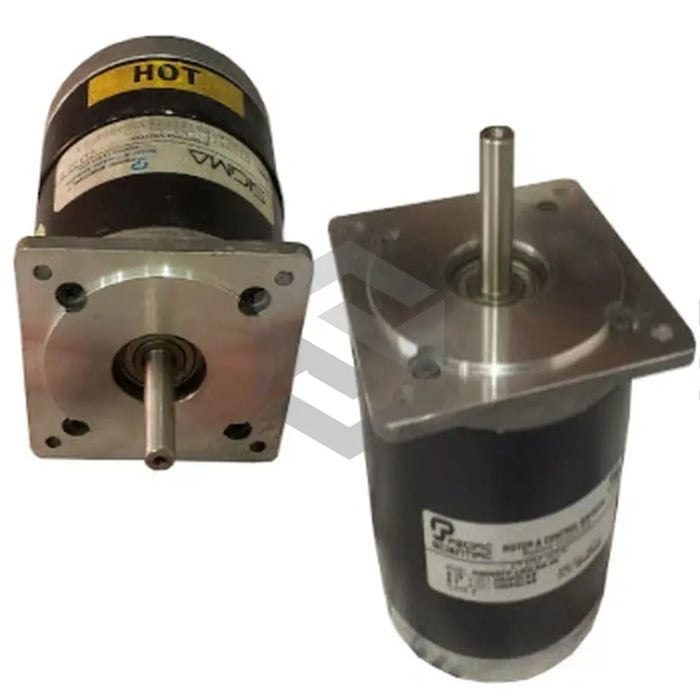

The Kollmorgen H33HLEC-LNK-NS-00 is a high-performance stepper motor from the H Hybrid Motors series by Kollmorgen. Boasting a maximum holding torque of 3720 oz-in (26.3 Nm) and a phase inductance range of 0.12 to 2.95 mH, this NEMA Frame Size 34 motor delivers exceptional control and repeatability. Designed for motion control in industrial automation, it provides precise positioning for applications requiring consistent torque and rapid start-stop cycles.
This motor features an integrated encoder with a 5 VDC ±10% supply voltage and delivers a dual channel quadrature output with index (Z) and differential line drive signals. Offering 500 or 1000 lines per revolution and supporting output frequencies up to 100 kHz, it ensures high-resolution feedback and noise-resistant data transmission. The shaft is configured with either a #303 Woodruff key or D-flat for enhanced torque transmission, and the assembly can withstand a radial shaft force of 140 lbs (623 N) and an axial shaft force of 400 lbs (1780 N).
Built to endure harsh environments, the H33HLEC-LNK-NS-00 operates reliably between –40°C and 100°C, with a matching storage temperature range and a thermal resistance between 0.16 and 0.24°C/W when mounted. The motor’s robust construction and heavy-duty NEMA mounting ensure secure installation and long-term durability. With its focused magnetic flux design and differential encoder output, this stepper motor offers efficient, precise performance and simplified integration, making it an ideal choice for demanding industrial applications requiring high torque, exceptional reliability, and fine resolution control.
