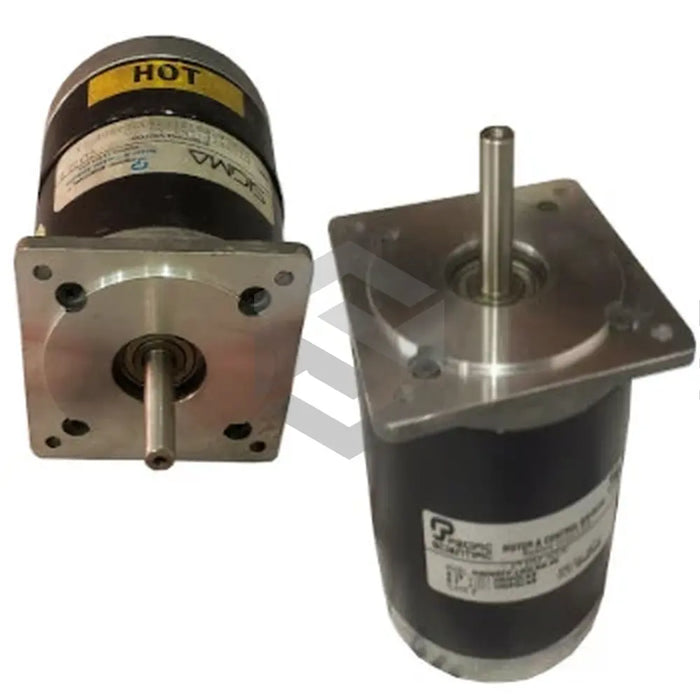

S image of H42RLFC-LSS-NS-02

H42RLFC-LSS-NS-02

by Kollmorgen
$1,347.50 - $1,347.50
$1,347.50
$1,347.50 - $1,347.50
$1,347.50

Available, Shipping Varies

The Kollmorgen H42RLFC-LSS-NS-02 is a high-performance stepper motor from the H Hybrid Motors series by Kollmorgen. This NEMA 42 compatible motor features a removable insulating bushing and standard round mounting configuration. With an L1 maximum dimension of 8.04 inches (204.22 mm) and MS connector type system construction, it is engineered for precise motion control in industrial automation applications.

Built for reliability, the motor’s technical footprint includes an A Dimension of 0.625 inches (15.875 mm), B Dimension of 2.19 inches (55.63 mm), and C Dimension of 0.705 inches (17.91 mm). Its motor leads extend a minimum of 12.0 inches (304.8 mm), and shaft length options are configurable to suit specific system layouts. The unit supports an encoder mounting option and various shaft loading conditions, ensuring adaptability. Splashproof terminal connections (L or M) maintain electrical integrity, while the MS connector offers secure signal and power interfacing.

Designed for durability and efficiency, this motor is UL Recognized with Class B insulation and an IP65 splashproof construction complete with a shaft seal to resist dust and water ingress. Compatibility with NEMA 42 frame size ensures straightforward integration into existing architectures. The removable insulating bushing enhances safety by isolating electrical connections, and the robust construction supports stable operation across –20 °C to +40 °C. In industrial settings, the H42RLFC-LSS-NS-02 delivers precise positioning, high torque responsiveness, and long-term reliability, streamlining automation processes and minimizing maintenance downtime.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

A Dimension

0.625 inches (15.875 mm)

B Dimension

2.19 inches (55.63 mm)

C Dimension

0.705 inches (17.91 mm)

Encoder Mounting Option

Available

Frame Size Compatibility

NEMA 42

Holding Torque

Refer to specific stack information

L1 Maximum Dimension

8.04 inches (204.22 mm)

L2 Dimension

7.29 inches (185.17 mm)

Motor Leads Length Minimum

12.0 inches (304.8 mm)

Removable Insulating Bushing

Yes

Round Mounting Configuration

Standard

Shaft Length Options

Various lengths configurable

Shaft Loading (radial Force)

Refer to specifications for radial force

Splashproof Construction Terminal Connections

L or M

System Construction Connector Type

MS Connector
