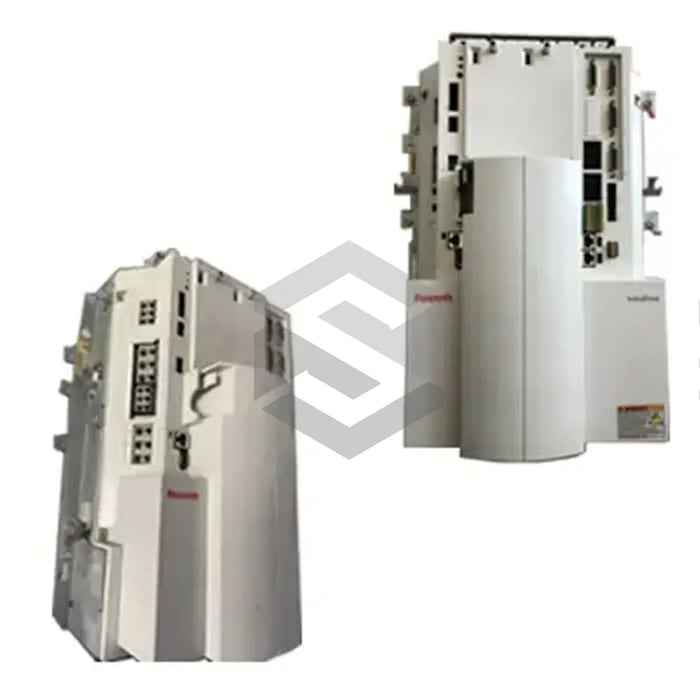

series image of HCQ02.1E-W0025-A-03

HCQ02.1E-W0025-A-03

by Bosch Rexroth Indramat
$7,500.00 - $7,500.00
$7,500.00
$7,500.00 - $7,500.00
$7,500.00
Available, Shipping Varies
The HCQ02.1E-W0025-A-03, a precision multi-axis drive controller, is manufactured by industry leader Bosch Rexroth Indramat. Utilizing a three-phase 200 V..500 V connection, the flat type controller accurately manages machine speed and position across four individual axes. It incorporates five encoder evaluations and offers an interface for external operator panels. The device can handle a rated current of 44 A and has a weight of 11.7 kg. It is equipped with an EtherNet port, a sercos III master port, 32 digital inputs, and 16 digital outputs. Additional features include two slots for optional digital I/O extensions, CompactFlash format programming module for firmware and drive parameters storage, and an external braking resistor used for charging. Protected by the IP 20 standard, it employs forced ventilation for optimal heat dissipation. It operates ideally in a 0°C - 40°C temperature range, but can be stored between -25°C and 55°C.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Multi-Axis Drive Controller
  • Construction Type: Flat
  • Voltage: 200 V..500 V
  • Control: Speed and Position
  • Axes Control: Up to 4
  • Encoder Evaluations: 5
  • Human Machine Interface: Yes
  • Storage Temperature: -25 ᵒC to 55 ᵒC
  • Operating Temperature: 0 ᵒC to 40 ᵒC
  • Rated Current: 44 A
  • Weight: 11.7 kg
  • Dimensions: 320 mm x 455 mm x 191 mm
  • Ethernet Port: Yes
  • Sercos III Master Port: Yes
  • Switching Frequencies: 4 Hz and 8 Hz
  • Digital Inputs: 32
  • Digital Outputs: 16
  • Embedded PC Compatibility: Yes
  • Protection Standard: IP 20
  • Digital I/O Extensions Slots: 2
  • Ventilation: Forced
  • Programming Module: CompactFlash format, replaceable
  • External Braking Resistor: Yes
  • Interface to Operator Panel: Yes (USB + LVDS)
