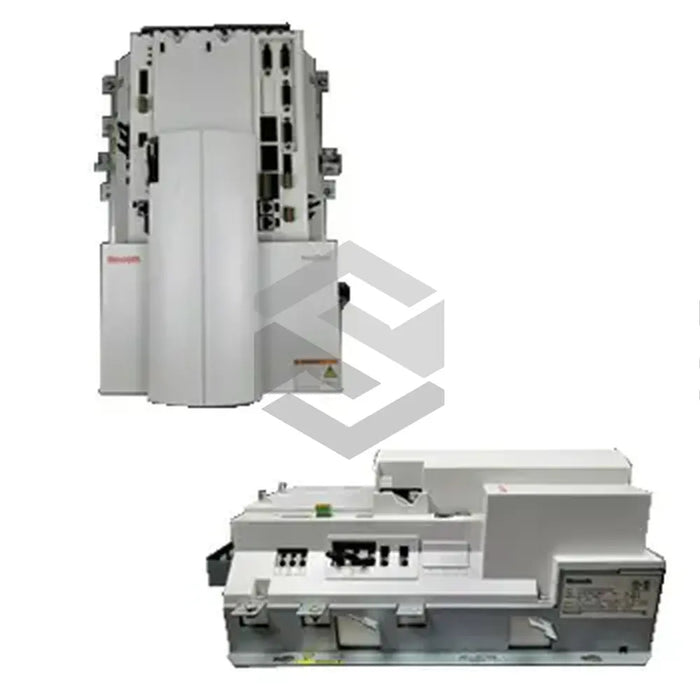

S image of HCT02.1E-W0025-A-03-B-L8-2S-NN-NN-NN-FW

HCT02.1E-W0025-A-03-B-L8-2S-NN-NN-NN-FW

by Bosch Rexroth Indramat
$13,279.05 - $13,279.05
$13,279.05
$13,279.05 - $13,279.05
$13,279.05

Available, Shipping Varies

The HCT02.1E-W0025-A-03-B-L8-2S-NN-NN-NN-FW is a drive controller model from the renowned Bosch Rexroth Indramat's HCT02 product line. Featuring a multi-axis concept, it is designed to operate one main and two auxiliary axes. Its highlighted specifications include an Embedded PC, LX 800 master communication, a basic structure, a mains connection voltage at 3 x AC 200-500 V +/-10%, a maximum power output of 25kW, and an IP 20 protective category. The unit hosts 3 integrated inverters, 3 axes, 4 encoder evaluations, 2 configurable slots, and an external brake resistor-compatible brake chopper. The controller, which needs to be installed in a control cabinet, operates under an ambient temperature of 0 to 40 degrees Celsius and a maximum installation elevation of 1000 meters above sea level. The recommended cooling methods are heat exchanger, fan, or air conditioning, based on power output.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Product Group

HCT02

Operation

One powerful axis and two auxiliary axes handling

Construction Design

Basic

Protection Category

IP 20

Mains Connecting Voltage

3 x AC 200-500 V +/-10%

Rated Power

25kW

Power Supply

Feeding

Axes

3

Encoder Evaluations

4

Configurable Slots

2

Ventilation Method

Forced

Programming Module

Changeable

Integrated Inverters

3

Operating Environment

Installation elevation: 1000 meters above sea level, Ambient temperature: 0 to 40 degrees, Relative humidity: <95% without condensation, Pollution degree: 3K3

Short Circuit Current Rating

42000A rms

Rated Input Current

44.0A

Output Voltage

3 x AC 0-500V

Weight

11.70kg

Insulation Resistance

8.00Mohm

Mounting Orientation

Portrait.
