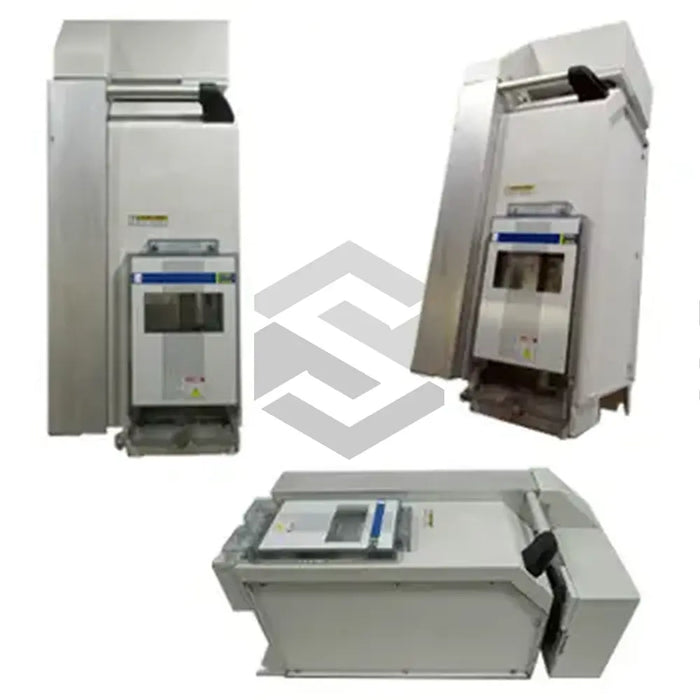

S image of HDC01.1-A040N-DN01-01-FW

HDC01.1-A040N-DN01-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The HDC01.1-A040N-DN01-01-FW, manufactured by Bosch Rexroth Indramat, is a high-functioning and reliable drive controller from the ECODRIVE03 family. With its carefully designed features, this model can effectively operate even in unfavorable environmental conditions. Drawing power directly from a 3-phase AC 200 - 480 V power source, it consistently operates at a frequency of 50 - 60 Hz and requires a rated current of 40 A. It performs optimally with a 4kHz or 8kHz driver, with power dissipation for its bleeder resistor capped at 0.075 kW. Equipped with a DeviceNet interface and an EcoX expansion interface, the HDC01.1-A040N-DN01-01-FW efficiently controls and monitors Indramat synchronous, asynchronous, frameless, and linear motors. The controller's cooling is facilitated through natural convection, and it has an IP65 protection category. It functions best at temperatures between +5 and +45℃ and can be installed up to 1000 m/sea level without derating.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

HDC01.1-A040N-DN01-01-FW

Product Family

ECODRIVE03

Power Source

3-phase AC 200 – 480 V

Voltage Frequency

50 – 60 Hz with ±2 Hz tolerance

Drive Frequency

4 kHz or 8 kHz

Rated Current

40 A

Cooling Method

Natural convection with heat sink unit

Continuous Current for 4 kHz drive

7.5/10 A

Continuous Current for 8 kHz drive

3/5 A

Power Dissipation by Bleeder Resistor

0.075 kW

Design

Standard with DeviceNet interface and EcoX expansion interface

Maximum Energy Dissipation

5 kWs

Control Voltage

21.6 – 26.4 VDC

Ambient Temperature Range

+5 to +45 degree Celsius

Maximum Installation Altitude

1000 m/sea level

Protection Category

IP65
