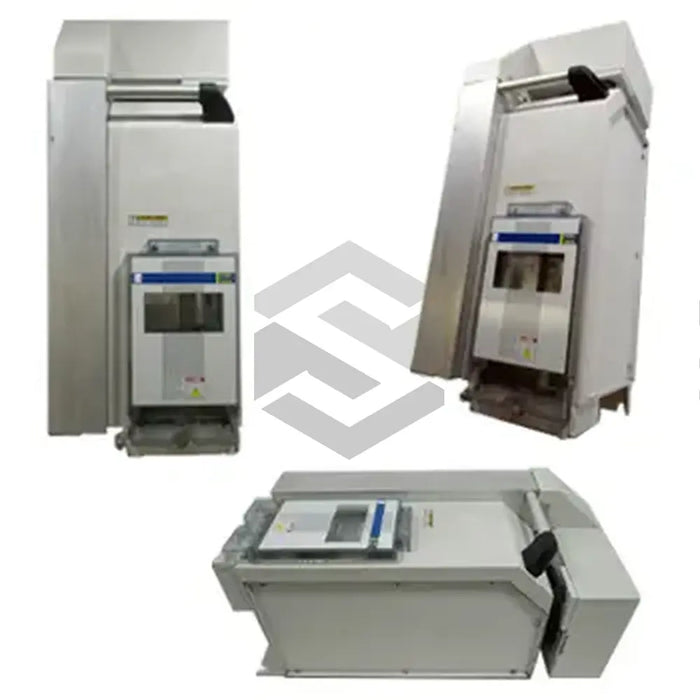

S image of HDC01.1-A040N-IB02-01-FW

HDC01.1-A040N-IB02-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The HDC01.1-A040N-IB02-01-FW from Bosch Rexroth Indramat is a drive controller designed for optimal performance in a wide range of high-demand industrial automation applications. Promising durability and robust function, this drive controller can effectively control and monitor diverse motor types, such as AC synchronous, asynchronous, frameless, and linear motors. Notably, the device is renowned for its IP65 protection category which ensures efficient functionality in harsh environmental conditions. The HDC01.1 model operates at a supply voltage of 3 × AC 200 – 480 V and requires a control voltage of 21.6 – 26.4 VDC and a DC bus voltage of 300 – 800 VDC. It features an H1 display for error diagnoses and has an S1 reset key for control parameter readjustments. Additionally, it also includes a holding brake connection and RS232/RS484 serial interfaces for connecting to other devices, facilitated by its InterBus interface 2. This model is representative of the ECODRIVE03 category, and it is ideal for machine tools, printing machines, and mounting systems.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

HDC01.1-A040N-IB02-01-FW

Function

Construct a cost-effective and sustainable motion control system

Applications

machine tools, printing machines, and mounting systems

Protection Category

IP65

Supply Voltage

3 × AC 200 – 480 V ±10% augmentation

Control Voltage Requirement

21.6 – 26.4 VDC

DC Bus Voltage Requirement

300 – 800 VDC

DC Bus Power Consumption at 400/480 VAC

0.65/0.75 kW

Heat Dissipation Mechanism

Ambient air

Maximum Power Dissipated by Bleeder Resistor

11.5 kW at 830 V DC bus voltage

Display

Seven-segment H1

Control Reset Key

S1

Interface for I/O Devices

RS232/RS484 Serial Interface

Data Exchange Interface

InterBus Interface 2

Product Category

ECODRIVE03
