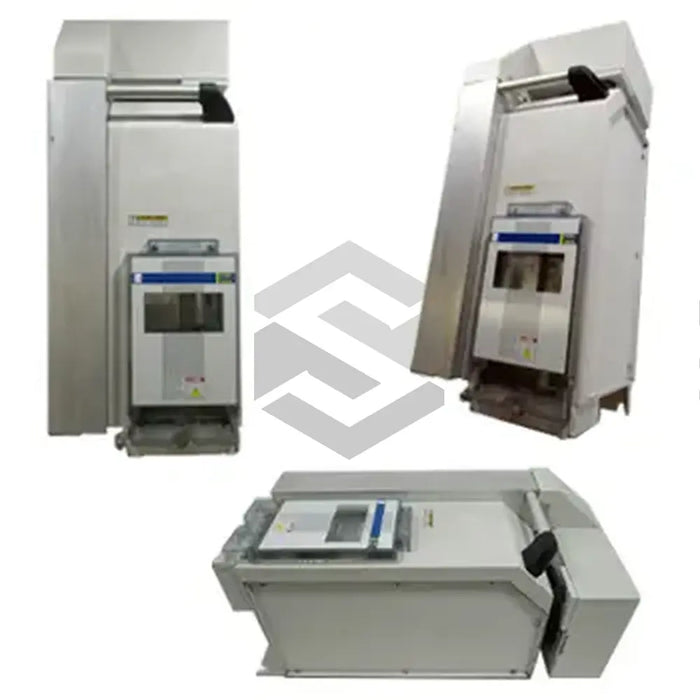

series image of HDC01.1-A040N-SE01-01-FW

HDC01.1-A040N-SE01-01-FW

by Bosch Rexroth Indramat
Request a quote
The HDC01.1-A040N-SE01-01-FW is a drive controller manufactured by Bosch Rexroth Indramat, suitable for connection to various motor types such as synchronous, asynchronous, and linear assembly motors. With a 50Hz to 60Hz mains frequency and selectable switching frequency of 4kHz or 8kHz, it is suitable for use in packaging machines and assembly systems. The importance of the permanent establishment of the ground wire connection and a protective copper conductor connection is emphasized for safe operation. Beware of potentially dangerous movements from incorrect or unclean cable connections and excessively hot housing during operation. The device operates between 5°C and 45°C and can be installed up to 2,000m above sea level with derated data. Humidity and storage conditions also apply. Its EMI Noise immunity complies with DIN EN 61800-3 specifications.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Controller
  • Model Number: HDC01.1-A040N-SE01-01-FW
  • Motor Type: Synchronous Motor, Asynchronous Motor, Assembly Motor, Linear Assembly Motor
  • Main Frequency: 50Hz to 60Hz with +/-2Hz tolerance
  • Switching Frequency: Selectable 4kHz or 8kHz
  • Use: Packaging Machines, Handling and Assembly Systems
  • Connection Requirement: Permanent Ground Wire Connection
  • Copper Conductor Requirement: Minimum 10mm2 cross-section
  • Operating Temperature: 5°C to 45°C
  • Install Altitude: 2,000m above sea level with derated data
  • Relative Humidity: 95% Maximum
  • Absolute Humidity: 25g/m3 Maximum
  • EMI Noise Immunity: In accordance with DIN EN 61800-3
  • Storage Temperature: -30°C to 85°C
  • Output Frequency: Maximum 400Hz
  • Nominal Charging Current: 5A to 12A
  • Energy Dissipation: 5kW Maximum.
