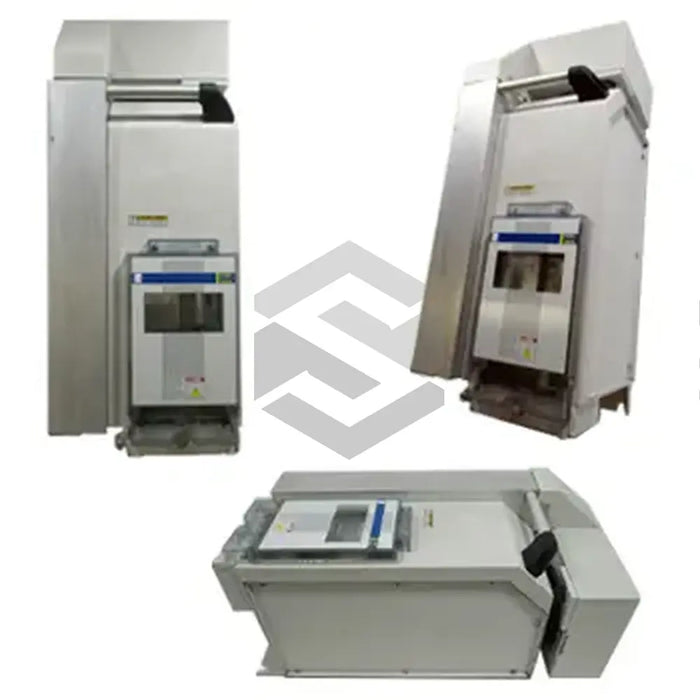

S image of HDC01.1-A100N-IB02-01-FW

HDC01.1-A100N-IB02-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The HDC01.1-A100N-IB02-01-FW is a drive controller from the HDC series by Bosch Rexroth Indramat, designed to supply an output of 100 Amperes. This application-specific product is commonly used in handling systems and printing machines. Its heat dissipation method uses natural convection and an external unit. It has a standard design, an InterBus 2 interface, and is designed to meet the requirements of EN 50178, restricting condensation and fine dust. It holds an IP 20 rating and operates within a temperature range of 5 to 45 degrees C, with storage/transport temperatures between -30 and 85 degrees C. The permitted mounting height is at 1000 meters, and it can operate in a three-phase mode under a mains frequency of 50 – 60, ±2. This equipment requires a nominal current range of 24 to 56 Amperes and includes a soft-start bleeder resistor rated at 12 Ohm. The HDC01.1-A100N-IB02-01-FW can function at switching frequencies of 4 or 8 kHz, with a maximum output frequency of 400 Hz.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

HDC01.1-A100N-IB02-01-FW

Drive Current

100 Amperes

Series

HDC

Line and Design Type

Line-1, Design-1

Heat Withdrawal Mode

Natural Convection and External Heat Sink

Interface Type

InterBus 2

Degree of Pollution

2 (EN 50178)

IP Rating

IP 20 (ICE 529-1989)

Permissible Inlet Temperature

5 to 45 degrees Celsius

Ambient Temperature Rating

5 to 45 degrees Celsius

Storage/Shipping Temperature

-30 to 85 degrees Celsius

Max Acceptable Mounting Height

1000 meters

Absolute Humidity Rating

25 g/m3

Mains Frequency Rating

50 – 60, ±2

Phase Mode

Three-Phase

Nominal Current (Based on Mains Input Voltage)

24 to 56 Amperes

Soft-Start Resistor

12 Ohm

Continuous Power of Soft-Start Resistor

0.5 kW

Switching Frequency

4 kHz and 8 kHz

Max Output Frequency

400 Hz at 4/8 kHz

Energy Dissipation

31 kWs

DC Bus Brake Type

Internal Dynamic Brake

Resistance of Dynamic Brake

12 Ohms
