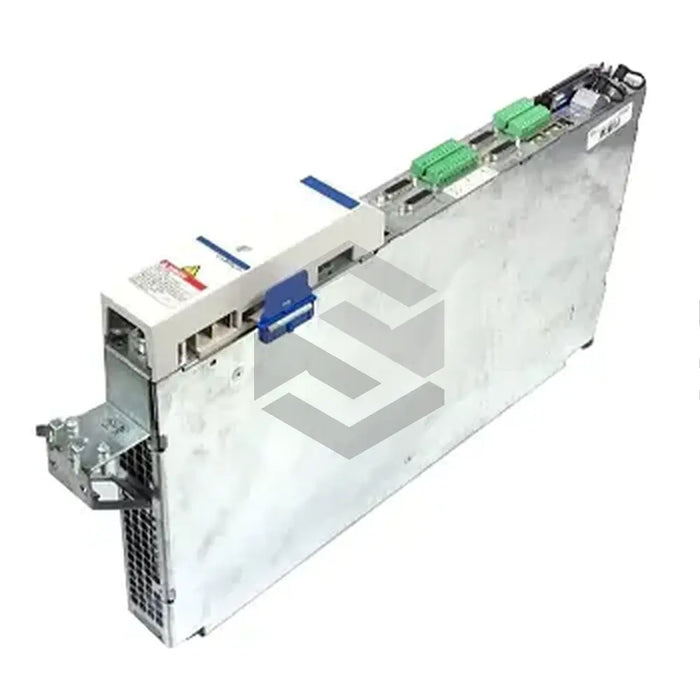

HDD12.2-W040N
The HDD12.2-W040N, a product of Bosch Rexroth Indramat, operates as a POWERDRIVE HDD Drive Controller. The controller's standout feature is its modular concept that enables it to be combined succinctly with AC drives, producing a compact drive package. With the integration of ADP and MHP AC motors, it facilitates agile response drives, making it versatile for main or servo drive uses in packaging, robotics, and handling machinery. The controller, which connects to an HVR or HVE supply module, provides the necessary signal voltages and power. The HDD12.2-W040N is of the 12 series and the second version, it's cooled via an air system and runs on a 40A current. Its specifications include a peak current of 40A, a continuous current of 20A, a maximum power loss of 125W, and a signal processing power consumption of 20W. Weighing in at 7.5kg, the controller can operate at ambient temperatures between 5 to 45 degrees Celsius and at a maximum height of 1000 meters above sea level, with a relative humidity of 95%. Its protection category is IP 10, and cooling is needed to maintain a constant ambient temperature of 45 degrees Celsius to prevent condensation damage.
