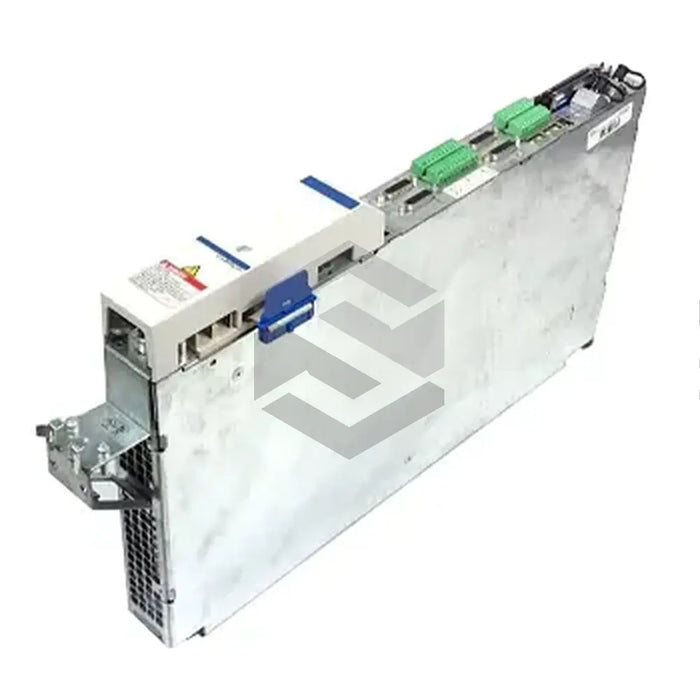

S image of HDD2.1-W040N-HD12-01-FW

HDD2.1-W040N-HD12-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The HDD2.1-W040N-HD12-01-FW, crafted by Bosch Rexroth Indramat, is an established modular drive controller with a fixed format. Key features of this unit include a slot each for software and command communication modules, but excludes slots for add-on modules. The embedded software module hosts the device's firmware and drive parameters, allowing for swift parameter transfer to a replacement unit during drive malfunction. The unit is fitted with a SERCOS command communication module for seamless interaction with SERCOS-compliant devices via fiber optic wires, incorporating a fault-tolerant ring topology. This ensures unaffected communication availability even if cable cuts occur, minimizing downtime. The device, rating an output of 40 Amps and accommodating two control axes, can commandeer two matching motors yielding a peak and continuous current per axis of 40 and 15 Amps respectively. Designed with an indoor-suited IP10 rated casing and a functional temperature range of 0-45 degrees Celsius, the unit can operate optimally under 1000 meters of altitude. Weighing 8 kilograms, this drive controller is skillfully engineered.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

HDD2.1-W040N-HD12-01-FW

Type

Modular Drive Controller

Slots

Software Module, Command Communication Module, No Optional Plugs

Software Module Features

Firmware, Drive Parameters

Command Communication Module Type

SERCOS

Communication Media

Fiber Optic Cables

Topology

Ring, Fault-tolerant

Rating Type

Attached to Basic Unit

Rated Output

40 Amps

Control Axes

Two

Peak Current per Axis

40 Amps

Continuous Current per Axis

15 Amps at 4 kHz, 10 Amps at 8 kHz

Power Loss

95 Watts per Axis

Housing

IP10 Rated, Indoor Use, Outdoor with Industrial Cabinet

Working Temperature

0 to 45 degrees Celsius

Site Elevation for Rated Data

Less than 1000 meters

Weight

8 kilograms
